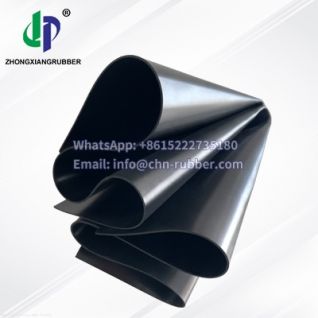

70+/-5Shore A 2.5Mpa SBR rubber gasket roll
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.6g/cm3
6. Hardness:65±5
7. Tensile strength: 2.5Mpa
8. Elongation: 180%
9. with or without fabric reinforcement

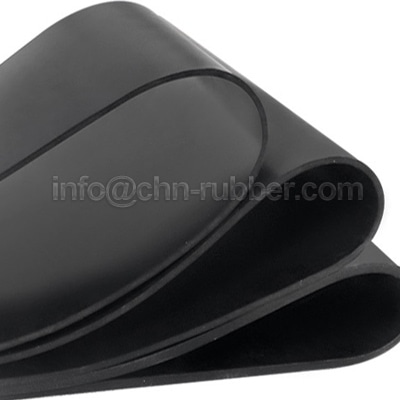

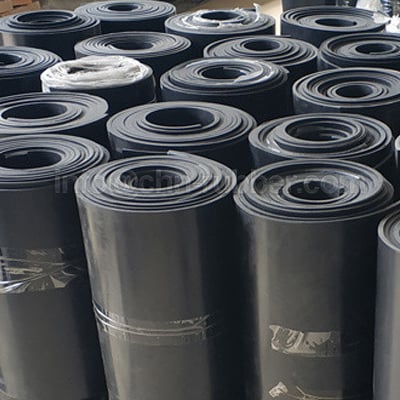

About rubber gasket roll:
SBR (Styrene-Butadiene Rubber) gasket rolls are widely used in various industries due to their excellent mechanical properties and cost-effectiveness. These rubber gasket roll is made from a synthetic elastomer that combines the benefits of styrene and butadiene rubber. The result is a material with high wear, tear and impact resistance, making it suitable for applications requiring durability and strength. SBR rubber gasket roll also exhibit good resistance to chemicals, ozone and weathering, further enhancing their reliability in varying environmental conditions.
They are commonly used in sealing applications to prevent leaks and provide a tight, secure seal. These gasket rolls can be easily cut into various shapes and sizes, making them versatile and adaptable to different requirements. Whether for automotive, construction or industrial applications, SBR gasket rolls are the first choice due to their versatility, durability and cost-effectiveness.
Rubber gasket roll size:
| Thickness mm | Gravity | width M | weight KGS/㎡ | Reinforcement |
| 1 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.6 | / |
| 1.5 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 2.4 | / |
| 1.7 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 2.72 | 1ply |
| 2 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 3.2 | 1ply |
| 3 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 4.8 | 1ply |
| 4 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 6.4 | 1ply |
| 5 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 8 | 2ply max |
| 6 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 9.6 | 3ply max |
| 8 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 12.8 | 4ply max |
| 10 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 16 | 5ply max |
| 12 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 19.2 | 8ply max |
| 15 | 1.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 24 | 10ply max |
