Density 1.6g/cm³ Black styrene butadiene rubber sheet
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 4mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black

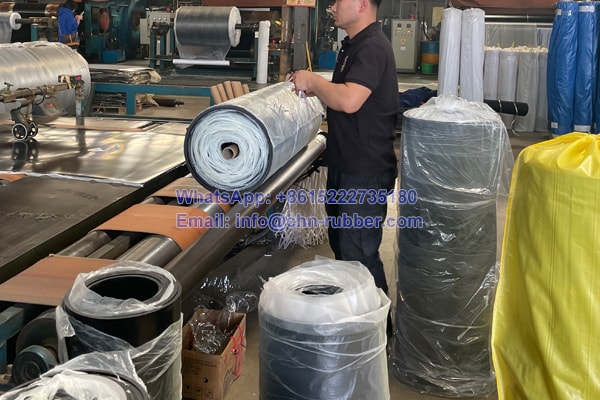

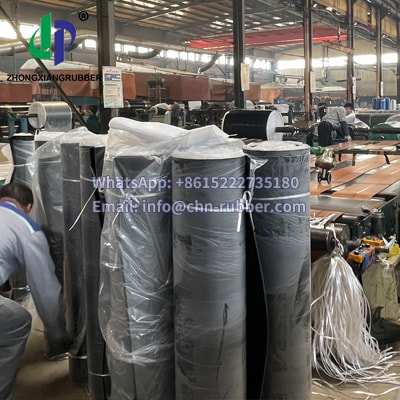

Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180
SBR sheet is designed for a variety of industrial applications, with the most suitable specific gravity in 1.3–1.9 g/cm³, ensuring that they can meet various load-bearing and flexibility requirements. SBR sheet is certified to ASTM D397 and SGS, RoHS2.0, combining the inherent wear resistance of styrene-butadiene rubber with precision manufacturing to provide reliable sealing, damping and protection solutions.
KEY FEATURES
- Adjustable density formula
- Low density (1.3–1.5 g/cm³): Ideal for lightweight shock absorption in HVAC systems and sound insulation panels, providing 70% energy absorption.

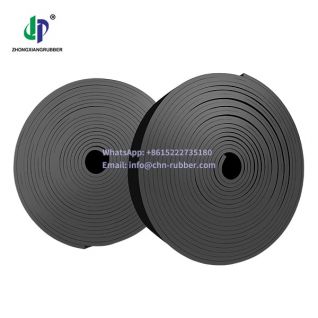

- Medium density (1.6–1.7 g/cm³): Balanced flexibility and durability for conveyor skirts and hydraulic press seals.
- High density (1.8–1.9 g/cm³): Enhanced wear resistance for mining equipment linings.

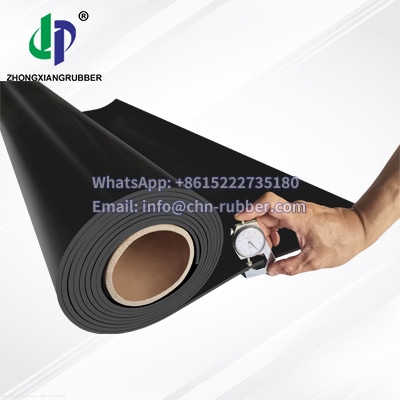

- Precise Thickness Control
- 4mm sheets are held to ±0.1mm tolerance by calendar rolls, ensuring consistency in subsequent flange gasket manufacturing.
- Multi-Lamination – Both coils and sheets with optional fabric or wire mesh reinforcement.
SBR SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
| ZXZRS20001S | 1.3+/-0.05 | 55 | 8 | 400 | Black/Red/Green, customized production according to demand | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20001S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20001S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
| ZXZRS20001S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20001S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20001S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
| ZXZRS20001S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm
| SPECIFICATION | ||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
TARGET APPLICATIONS
- 1. Material Handling: High density sheets for aggregate processing chute liners (resistant to abrasion from particles larger than 5mm).
- 2. Agriculture: Medium density rolls for combine harvester seals
- 3. Construction: Low density sheets for expansion joint fillers
