Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180

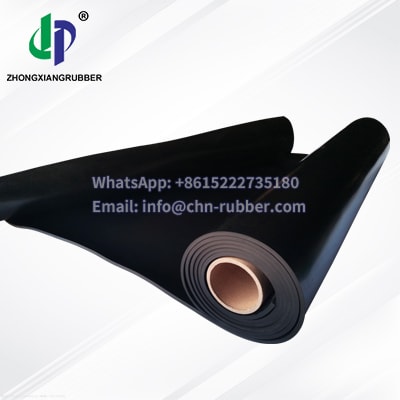

Industrial sbr rubber roll is a low quality synthetic rubber, made from crumb rubber – the waste product of the tire industry. Although it is less expensive than other types of synthetic rubber, it is not as durable or as resistant to heat and chemicals. For this reason, it is often used in cheaper products, or in applications where it will not be subject to much wear and tear. The industrial sbr rubber roll we are offering is of low quality, with a density of 1.3g/cm³ - 1.9g/cm³. It is not as durable as our other rubber sheets, and is more susceptible to tearing and puncturing. Despite this, it still has many uses and can be helpful in a variety of applications. It is cheaper than our other rubber sheets, making it a good option for those on a budget.
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
g/cm³ | Shore A | Mpa | (min) % | ||||
STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
ZXZRS20101S | 1.3+/-0.05 | 55 | 8 | 400 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
ZXZRS20101S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
ZXZRS20101S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
ZXZRS20101S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
ZXZRS20101S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
ZXZRS20101S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
ZXZRS20101S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
ZXZRS20101S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
ZXZRS20101S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm |
SPECIFICATION | ||||||||||||
Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
![]() |
![]() |
![]() |
![]() |
Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
