Red rubber gasket material SBR rubber roll 1-10mm
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 1mm-100mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request

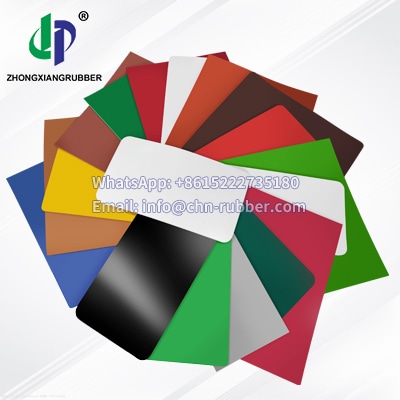

Color: Black/Red/Green/Tan/Yellow. Available upon request

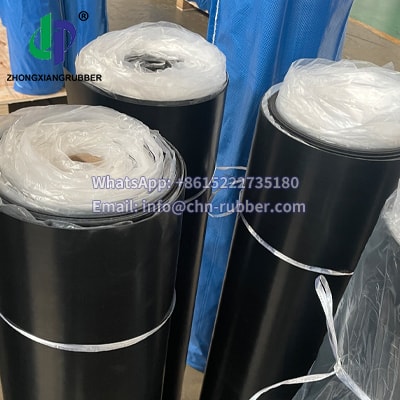

Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180
SBR rubber sheets, also known as styrene butadiene rubber sheets, are an excellent compound rubber material,SBR rubber sheet is very similar to natural rubber sheet, but SBR rubber sheet is more economical in price and has wear resistance and good mechanical properties. Generally, SBR can be selected instead of NR rubber. In SBR colored rubber sheets, red rubber gasket material roll is the most widely used color. It can be used to make gaskets, seals, and can also be used in engineering projects. Red mesh is added to improve stability, abrasion resistance and impact resistance.
The red rubber gasket roll provides better sealing adhesion and smoother surface by fitting to the surface of the non-smooth flange, excellent impact strength and better sealing adhesion. Although SBR is similar to NR, SBR is not as elastic as NR, and it is super strong Tensile strength, SBR is relatively hard compared to NR, and it cannot be used in chemically corrosive environments and oily environments, and its resistance is relatively low, which will shorten its life. Under these conditions, we It is more recommended that you use CR and NBR.
WE PROVIDE:
We can directly provide you with the complete red rubber gasket material roll, or cut into any specifications, these are very easy for us, we are very happy to provide you with the most perfect solution, and can also be customized according to your drawings The specific gasket, of course, this is more complicated, you need to provide us with the drawings in advance. If you have needs, you can contact us at any time, we will reply you in time.
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
| ZXZRS20001S | 1.3+/-0.05 | 55 | 8 | 400 | Black/Red/Green, customized production according to demand | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20001S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20001S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
| ZXZRS20001S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20001S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20001S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
| ZXZRS20001S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | |||||||
| SPECIFICATION | ||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
