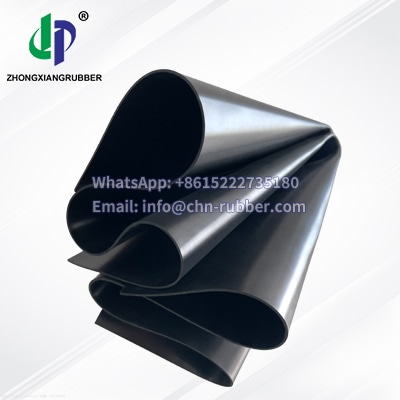

SBR rubber sheet 1.5g/cm3 black material gasket rubber roll
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P .H & Wechat: 008615222735180
Gasket rubber roll is a type of gasket that is made from rubber. It is a flexible and versatile gasket that can be used in a variety of applications. Gasket rubber roll is available in a variety of thicknesses and widths to meet your needs. If you're in need of a reliable and durable gasket, you can't go wrong with an SBR rubber sheet. This type of rubber sheet is made from a blend of natural and synthetic rubber, and it offers superior resistance to heat, abrasion, and waterproofing. Plus, it's affordable and easy to find. SBR rubber sheet roll is a kind of high-quality and durable rubber material, which has many uses in the manufacture of various products.
If you're looking for a great low-price option for your next gasket project. Made of SBR black rubber sheet roll material, rubber gasket sheet price is a great option for a variety of applications. Whether you're looking for a way to seal a pipe or protect a surface from abrasion, gasket rubber roll is a great choice. So don't hesitate - order your rubber gasket sheet today and get started on your next project!
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
| ZXZRS20001S | 1.3+/-0.05 | 55 | 8 | 400 | Black, customized production according to demand | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20001S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20001S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
| ZXZRS20001S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20001S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20001S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
| ZXZRS20001S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | |||||||
| SPECIFICATION | ||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
