PRODUCT

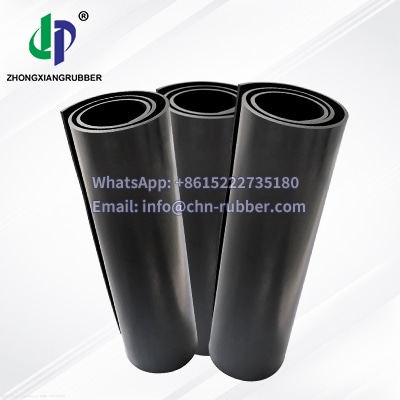

Black SBR thin rubber sheet with wear resistance
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black

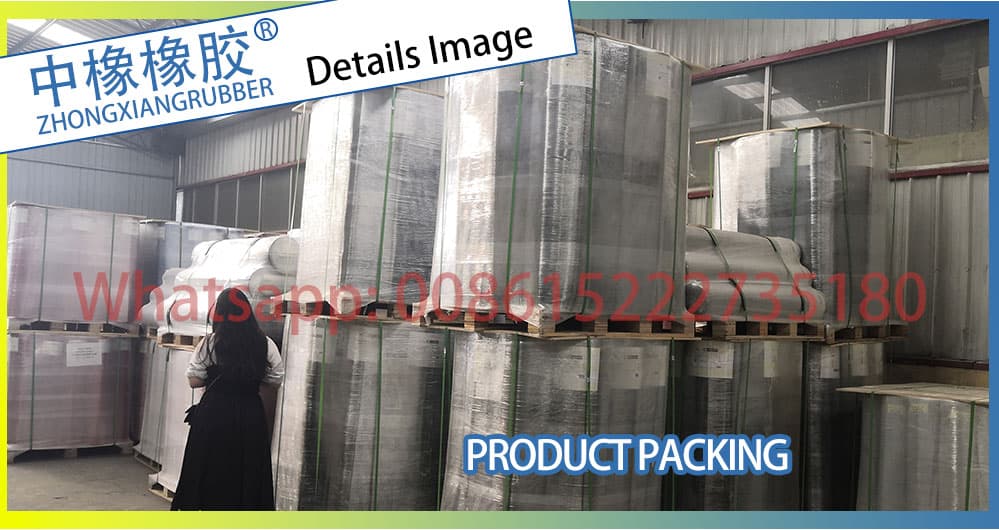

Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P .H & Wechat: 008615222735180
This is a versatile material that is ideal for gasket making and a variety of general-purpose applications. This SBR (Styrene-Butadiene Rubber) sheet material provides a practical and cost-effective solution for use wherever reliable sealing and cushioning are required. This roll rubber gasket material is available in a convenient roll format and is designed to easily create custom gaskets, seals, and protective linings. Its black color provides a classic, low-profile look and is useful for light-sensitive applications or where a non-reflective surface is required.
KEY FEATURES
- Premium Gasket Material: Roll rubber gasket material is ideal for creating custom gaskets for water, air, and low-pressure seals (not recommended for oil, fuel, or solvent applications).
- Durable and Resilient: SBR rubber has good abrasion resistance and impact strength, ensuring long-lasting performance in a variety of environments.
- Flexible and Easy to Cut: This black thin rubber gasket sheet is easy to process and can be precisely cut and formed to meet specific gasket design and application needs.
- Cost-effective: Delivers reliable SBR rubber performance at an economical price, making it an affordable choice for gasket needs.
- Available in Rolls: Available in roll rubber gasket material for easy storage and efficient use, minimizing waste and simplifying large projects.
- Neutral Black: Provides a professional, non-reflective appearance for applications requiring light absorption.
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
| ZXZRS20001S | 1.3+/-0.05 | 55 | 8 | 400 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20001S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20001S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
| ZXZRS20001S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20001S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20001S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
| ZXZRS20001S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | |||||||
| SPECIFICATION | ||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
TARGET APPLICATIONS
- 1. Manufacture precision gaskets for electronic enclosures and light fixtures.
- 2. Produce thin shims and spacers for fine adjustment and alignment.
- 3. Develop thin seals where minimum thickness is critical.
- 4. Make complex gasket shapes for specialized equipment.
- 5. Anti-vibration pads and damping
- 6. Weather stripping (basic applications)
- 7. General purpose rubber parts
- 8. DIY projects requiring flexible black rubber material
Choose the rubber sheet black thickness and roll size you need for your gasket project. This reliable and economical roll rubber gasket material is available for your sealing and general purpose rubber needs. Contact us for custom cutting, volume discounts, or assistance in selecting the best rubber material for your specific needs.
