Industrial gasket seals rubber sheet synthetic red sbr rubber sheet
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Red
Packing Information: Regular / Up to your choice

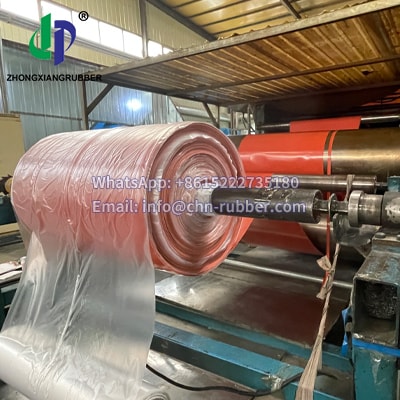

Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180

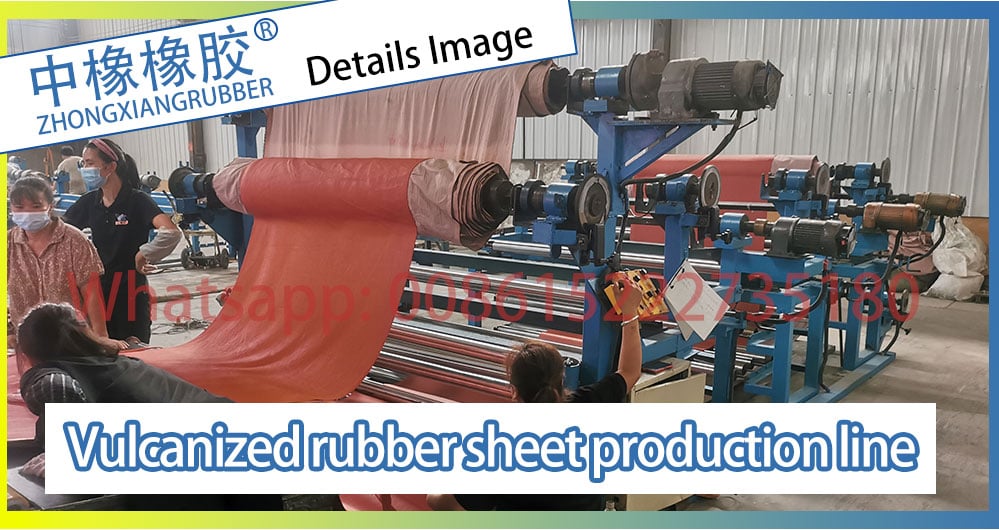

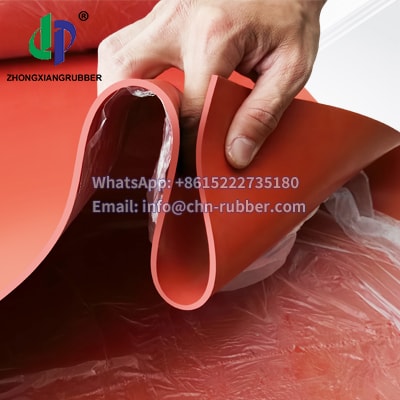

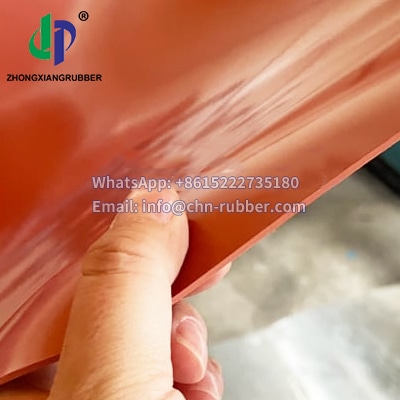

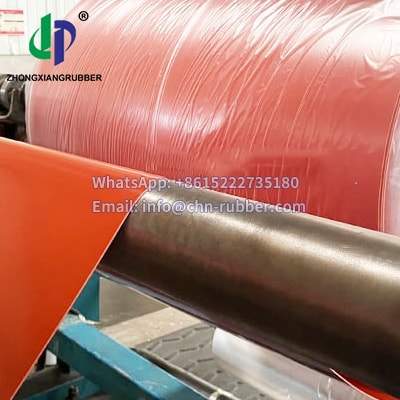

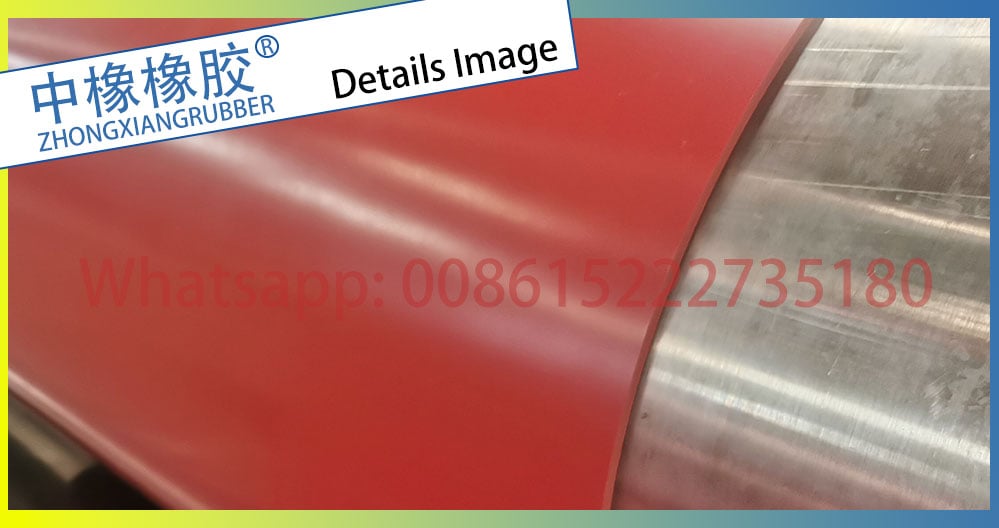

Red sbr rubber sheet is one of the synthetic rubber roll materials, mainly used for the manufacture of rubber parts such as gaskets and seals. SBR raw materials are added in the rubber processing process, so that the vulcanized and calendered sheet has higher hardness and high density. Red rubber sheet can be used in hot and cold water environment; sbr is economical and universal, the disadvantage is that polar oils (oil, fuel, solvent or hydraulic oil), chemical substances have low tolerance and poor, so sbr red rubber is not recommended Use in environments with too much oil or exposure to strong light outdoors; red hard rubber rolls are more commonly used than black sheets.
KEY FEATURES:
- Good abrasion resistance.
- Excellent impact strength.
- Good elasticity.
- High tensile strength.
Red SBR rubber sheet is used as a synthetic rubber sheet for red rubber gaskets. It has excellent sealing performance and high cost performance, but synthetic rubber sheet is not resistant to oil substances and has poor corrosion resistance.Synthetic Rubber Sheet is a common choice for general-purpose gasket materials in environments that come in contact with hot or cold water. This is closely related to the production of sbr rubber sheet raw materials - a mixture of natural rubber and styrene-butadiene rubber, sbr is a fairly waterproof material.
- Universal Gasket Material
- Accept custom production of thickness, size
- Compared with other rubber sheets, the cost performance is higher
- Red SBR rubber sheet with high tensile strength and medium hardness
- Temperature range: about -50℃~+100℃
- Insert Fabric/Custom Fabric Layer Material (Canvas, Nylon) Available
- We accept customer's special specifications and requirements for customized products
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
| ZXZRS20201S | 1.3+/-0.05 | 55 | 8 | 400 | Red, customized production according to demand | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20201S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20201S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
| ZXZRS20201S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
| ZXZRS20201S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20201S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20201S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20201S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
| ZXZRS20201S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | |||||||
| SPECIFICATION | ||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
