Gravity 1.3g/cm3 3mm SBR rubber material gasket sheets
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice

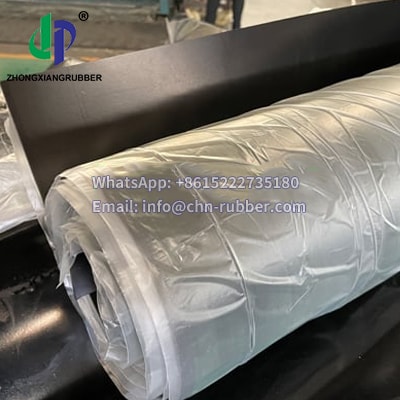

Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P .H & Wechat: 008615222735180
SBR rubber sheets are SGS and ASTM certified, providing versatile industrial sealing solutions. With a high styrene content and 55 Shore A hardness, these rubber sheets balance cost-effectiveness and performance across the operating range. Our formulation is ideal for sheet gasket material suppliers seeking reliability.
KEY FEATURES
- 1.3 specific gravity sbr gasket material offers high wear resistance.
- Customizable reinforcements, diagonal nylon fabric or wire rope inserts increase tear resistance for high stress flange gaskets.
FLAME RETARDANT RUBBER PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | ||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Finish Type | ||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | ||
| ZXZRS20101S | 1.3+/-0.05 | 55 | 8 | 400 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture | ||
| ZXZRS20201S | 1.3+/-0.05 | 55 | 8 | 400 | Red | |||
| ZXZRS20401S | 1.3+/-0.05 | 55 | 8 | 400 | Green | |||
| ZXZRS20001S | 1.3+/-0.05 | 55 | 8 | 400 | Customized production according to demand | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | ||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight | |||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 2.56 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 20.28 | 4.15 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 23.40 | 4.79 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 28.08 | 5.75 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 43.68 | 8.95 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 59.28 | 12.14 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 74.88 | 15.34 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 90.48 | 18.53 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 121.68 | 24.92 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 152.88 | 31.31 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 184.08 | 37.70 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 230.88 | 47.28 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 52.00 | 10.65 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 65.00 | 13.31 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 78.00 | 15.97 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 130.00 | 26.62 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric |
Encrypted canvas |
TARGET APPLICATIONS

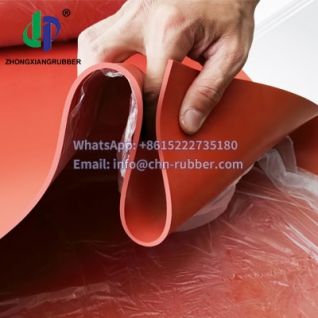

- 1. Automotive Assembly: Red SBR gaskets for coolant line sealing.
- 2. HVAC Ducting: Black sheets for airtight sealing in ventilation systems
- 3. Architectural Joints: Fabric insert rolls for bridge expansion joints
