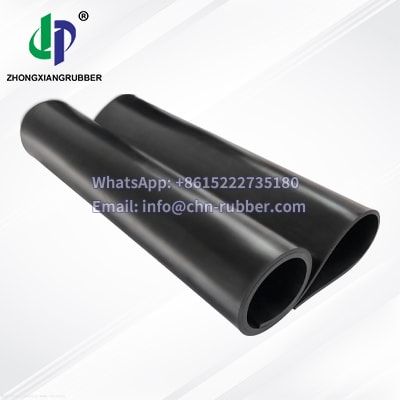

Gasket sheet material 60-70 hardness SBR vulcanization rubber sheet
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 5mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P .H & Wechat: 008615222735180
Rubber gasket sheet is produced by vulcanization of high-quality SBR compound, which has excellent durability, flexibility and wear resistance under harsh operating conditions. Our formula is optimized to provide reliable sealing, effective shock absorption and strong impact absorption, making it a versatile choice among various gasket sheet types.
SBR rubber sheet is manufactured in accordance with strict ASTM and SGS/REACH/RoHS2.0 industry standards and undergoes a series of precise cutting and quality assurance processes. The material has a standard width of 1.2 meters and a roll length of 5 meters or 10 meters (customized production can be produced on demand), and a wide range of thicknesses to meet various application requirements. This level of customization ensures seamless product integration into applications in automotive, construction, industrial machinery and other fields where performance and life are critical.
By combining advanced production technology with a deep understanding of gasket types and their application requirements, SBR is one of the most reliable and cost-effective solutions for gasket sheet types. The commitment to quality and innovation highlights our position as an industry leader, committed to providing superior products that improve sealing performance and overall equipment reliability.
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | ||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Finish Type | ||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | ||
| ZXZRS20101S | 1.5+/-0.05 | 65 | 3-4 | 200 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture | ||
| ZXZRS20201S | 1.5+/-0.05 | 65 | 3-4 | 200 | Red | |||
| ZXZRS20401S | 1.5+/-0.05 | 65 | 3-4 | 200 | Green | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | Customized production according to demand | |||
| Note:1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | ||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight | |||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 14.40 | 2.87 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 23.40 | 4.80 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 27.00 | 5.53 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 32.40 | 6.64 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 50.40 | 10.32 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 68.40 | 14.01 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 86.40 | 17.70 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 104.40 | 21.38 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 140.40 | 28.75 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 176.40 | 36.13 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 212.40 | 43.50 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 266.40 | 54.56 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 60.00 | 12.29 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 75.00 | 15.36 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 90.00 | 18.43 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 150.00 | 30.72 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
