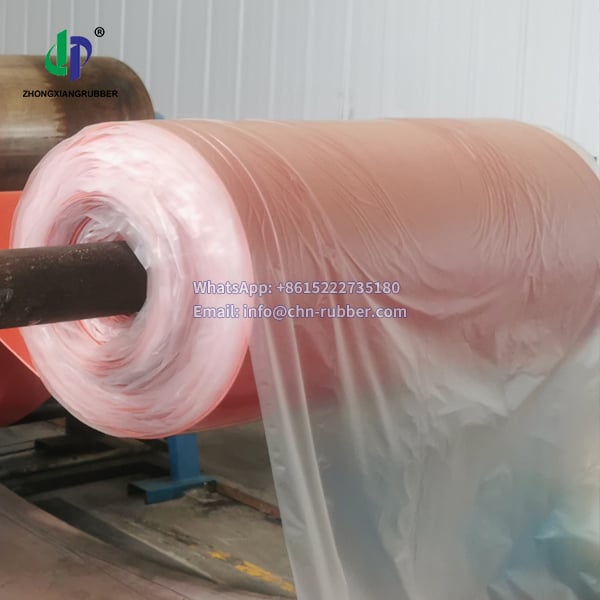

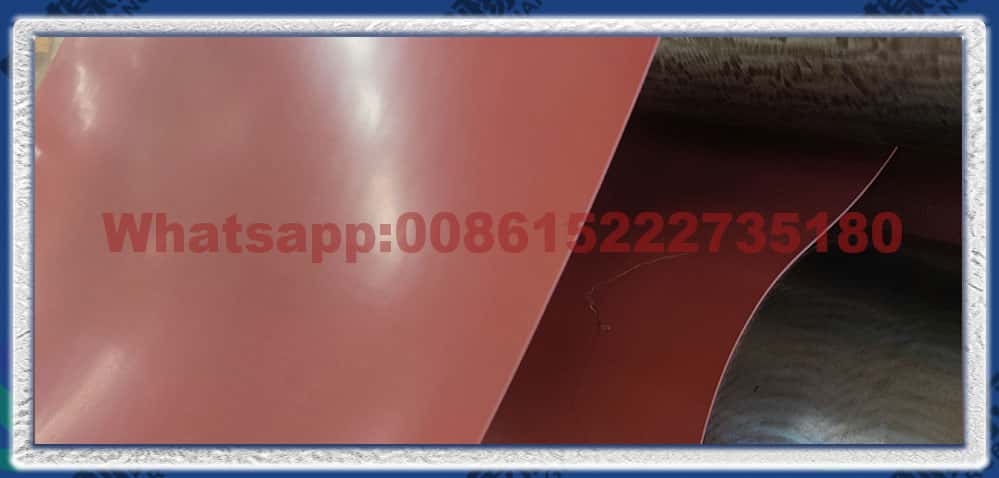

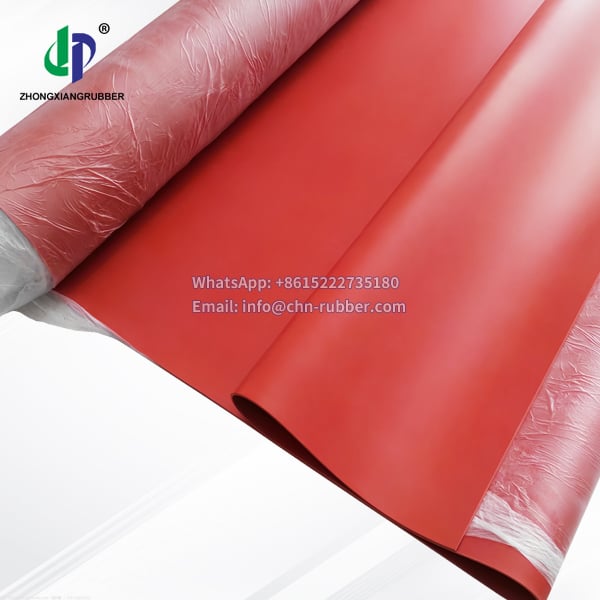

1.7g/cm³ Red gasket SBR material rubber sheet rolls
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P.H & Wechat: 008615222735180
Combine the dependable, cost-effective performance of SBR (Styrene-Butadiene Rubber) with high visibility using our Red SBR Rubber Sheeting. This general-purpose elastomer provides a solid balance of physical properties, making it a versatile choice for a wide array of industrial applications where moderate resistance and reliability are key. This sheeting provides a practical solution for non-oil resistant sealing, padding, and protective needs.
KEY FEATURES:
- High-Visibility Red Color: Allows for quick visual identification of parts, safety demarcation, or specific application coding.
- Solid Abrasion Resistance: Offers good durability against rubbing and wear in moderate-duty applications.
- Effective Impact Absorption: Provides cushioning and protection against shocks and impacts.
- Good Mechanical Strength & Flexibility: Exhibits reliable tensile strength and elongation, allowing it to conform to surfaces and withstand physical stress.
- Dependable Resilience & Recovery: Returns effectively to its original shape after moderate compression.
- Economical General-Purpose Solution: Delivers essential rubber properties at a cost-effective price point for numerous industrial requirements.
- Consistent Material Properties: Manufactured for reliable performance characteristics sheet after sheet.
FLAME RETARDANT RUBBER PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS |
||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type |
||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- |
||
| ZXZRS20101S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture |
||
| ZXZRS20201S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Red | |||
| ZXZRS20401S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Green | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Customized production according to demand | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm |
||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight |
|||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 16.32 | 3.34 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 26.52 | 5.43 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 30.60 | 6.27 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 36.72 | 7.52 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 57.12 | 11.70 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 77.52 | 15.88 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 97.92 | 20.06 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 118.32 | 24.23 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 159.12 | 32.59 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 199.92 | 40.94 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 240.72 | 49.30 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 301.92 | 61.83 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 68.00 | 13.92 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 85.00 | 17.41 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 102.00 | 20.89 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 170.00 | 32.82 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
TARGET APPLICATIONS
- 1. The combination of SBR properties and red color makes this sheeting suitable for:
- 2. Color-Coded Gaskets and Seals: Easily identifiable seals in machinery or plumbing where oil/fuel resistance isn't critical.
- 3. Safety Marking & Edging: Lining pathways, marking safety zones, or highlighting edges on equipment or structures.
- 4. Visible Protective Pads: Creating easily noticeable anti-vibration or impact pads for machinery or work surfaces.
- 5. Workshop Matting & Bench Tops: Providing a durable, easily visible, and non-slip surface (check specific surface finish).
- 6. Skirting and Wipers (Non-Oily Environments): General-purpose skirting or wiping applications where visibility aids maintenance or inspection.
- 7. Industrial Component Fabrication: Manufacturing various custom parts where SBR properties suffice and red color is desired.
- 8. Toolbox Liners: Offering protection and easy visibility of tools.
