SBR rubber sheet custom specification for industrial gasket material
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice

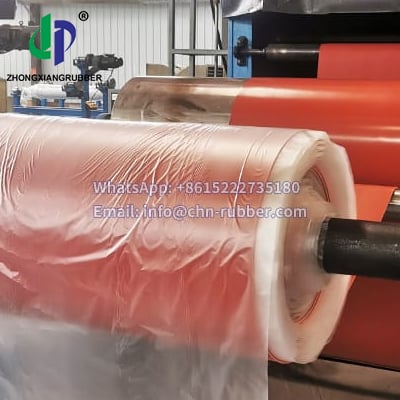

Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180
SBR rubber sheets produced by Tianjin China Rubber Co., Ltd are ASTM and SGS certified, and undergo advanced vulcanization processes for a variety of industrial applications that require economical and durable products. As a trusted sbr rubber sheet manufacturers, we use SBR high-quality polymers to provide excellent wear resistance and dynamic flexibility in the operating range of -40°C to +80°C.
KEY FEATURES
- Multi-layer reinforcement – Diagonal nylon fabric inserts (1-10 layer options) increase tear resistance to a high level, ideal for conveyor belt splicing and hydraulic press linings.
- Anti-slip surface texture – The surface treatment can be customized according to needs, which is critical for inclined material handling systems.
- Low compression set – The optimized vulcanization process can maintain sealing performance after long-term compression of flange gaskets.
- Standard sheet size: 1.2m×10m (thickness 1-50mm). Custom color formulations and roll slitting available for OEM integration
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |

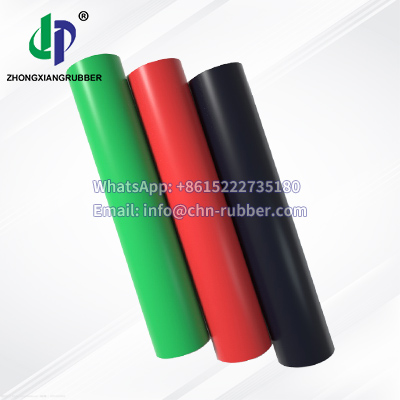

| ZXZRS20001S | 1.3+/-0.05 | 55 | 8 | 400 | Black/Red/Green, customized production according to demand | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20001S | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20001S | 1.4+/-0.05 | 60 | 5-6 | 300 | |||
| ZXZRS20001S | 1.45+/-0.05 | 60 | 4-5 | 280 | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20001S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20001S | 1.8+/-0.05 | 75 | 1.5 | --- | |||
| ZXZRS20001S | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
| SPECIFICATION | ||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.4 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.4 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.4 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.4 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.4 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.4 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.4 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.4 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.4 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.4 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.4 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
- 1. Construction joint sealing: For bridge expansion joint weatherproofing panels
- 2. Food processing conveyors: For dry food handling systems
- 3. Gasket processing: Any sealing gasket can be processed
