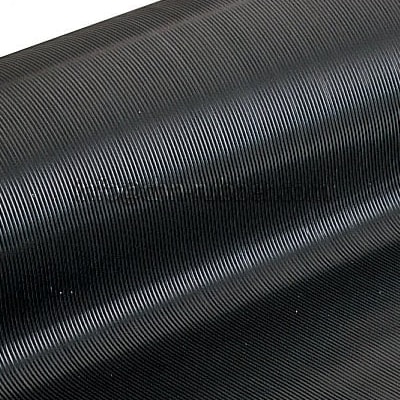

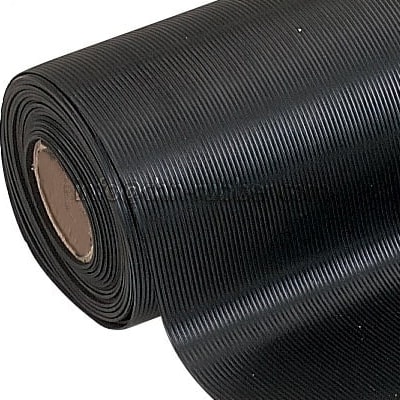

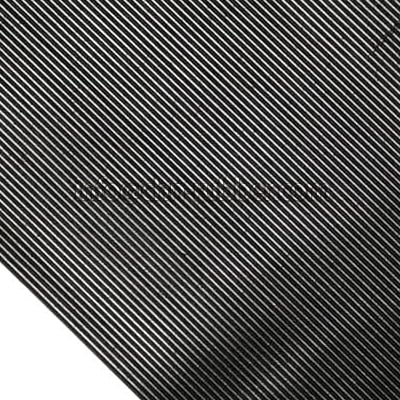

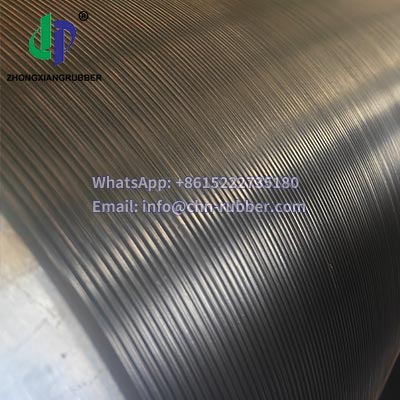

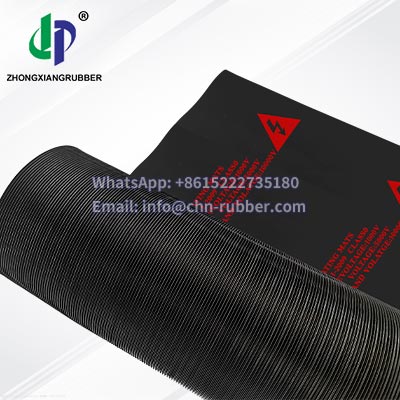

Black Ribbed IEC 61111 insulating electrical safety matting
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH IEC61111-2009
Thickness: 3mm~8mm;
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black; Custom colors upon request
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Get more information:
Email: info@chn-rubber.com
P.H & Wechat: 008615222735180
IEC 61111 Insulating Electrical Safety Matting | 23 Years Manufacturer
Backed by 23 years of specialized industrial rubber manufacturing expertise, Tianjin China Rubber Co., Ltd premium iec 61111 insulating matting provides top-tier dielectric protection for high-voltage environments. Engineered to meet strict international standards, our high-performance electrical safety matting acts as an essential defense line, safeguarding utility workers, engineers, and technicians from hazardous ground faults and electrical shocks.
IEC 61111 Insulating Electrical Safety Matting Data Sheet:
| Thickness | Standard Width | Gravity | Weight | Class | Working AC | Proof Voltage | Withstand Volt |
|---|---|---|---|---|---|---|---|
| 3 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 4.5 kg/㎡ | Class 0 | 1 KV | 5 KV | 10 KV |
| 4 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 6.0 kg/㎡ | Class 0 | 1 KV | 5 KV | 10 KV |
| 5 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 7.5 kg/㎡ | Class 0 | 1 KV | 5 KV | 10 KV |
| 6 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 9.0 kg/㎡ | Class 0 | 1 KV | 5 KV | 10 KV |
| 3 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 4.5 kg/㎡ | Class 1 | 7.5 KV | 10 KV | 20 KV |
| 4 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 6.0 kg/㎡ | Class 1 | 7.5 KV | 10 KV | 20 KV |
| 5 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 7.5 kg/㎡ | Class 1 | 7.5 KV | 10 KV | 20 KV |
| 6 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 9.0 kg/㎡ | Class 1 | 7.5 KV | 10 KV | 20 KV |
| 7 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 10.5 kg/㎡ | Class 2 | 17 KV | 20 KV | 30 KV |
| 8 mm | 1m / 1.2m / 1.4m / 1.5m / 1.6m | 1.5 g/cm³ | 12.0 kg/㎡ | Class 2 | 17 KV | 20 KV | 30 KV |
Understanding IEC 61111 Insulating Matting Compliance:
The International Electrotechnical Commission standard IEC 61111 dictates the stringent performance requirements for rubber-based electrical safety matting globally. In heavy-duty industries, workplaces dealing with live high-voltage gear—such as electrical switchrooms, substation flooring, generator enclosures, and control rooms—face a constant threat of arc flashes or shock accidents.
Our specially vulcanized iec 61111 insulating matting acts as a physical barrier against high-voltage current flows, completely isolating personnel from the ground path. Formulated with premium elastomer blends, these mats deliver high tensile strength, supreme pierce resistance, and durable anti-aging properties, providing reliable insulation under extreme working conditions.
Why Source Electrical Safety Matting from Our Factory?
- ■

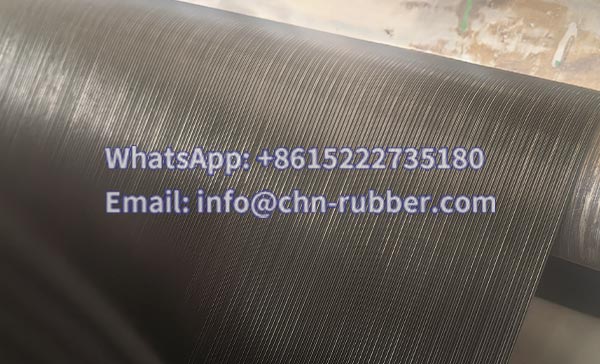

Rigorous Batch Dielectric Testing: Every roll of our standard matting goes through strict proof-voltage and withstand-voltage tests matching Class 0, Class 1, and Class 2 classifications.
- ■
Mandatory Back-Marking Signals: In full accordance with international compliance laws, all roll surfaces are permanently marked with our factory brand, lot numbers, standard codes, and exact insulation voltage limits.
- ■
Custom Dimensions up to 1.6m Width: We offer broad customization across multiple widths (1m to 1.6m) and customized thickness levels (3mm to 8mm) to fit any server rack layout or floor plan perfectly.

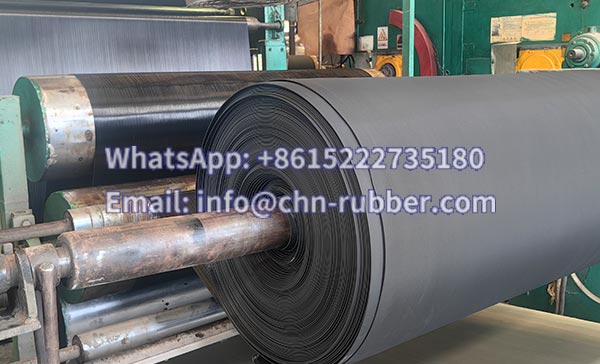

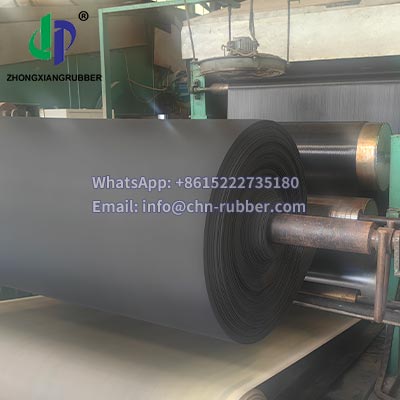

IEC 61111 Insulating Matting Wholesale & Manufacturing Showcase:
Global Wholesale Order Fulfillment & Customization Services
Whether you are expanding your electrical supply distribution network or sourcing massive industrial mats for local grids, our factory delivers wholesale flexibility. We provide comprehensive OEM capabilities, certified material reports, and reliable custom packaging for worldwide freight shipping.
Our facility keeps high manufacturing capacity to maintain ultra-fast dispatch lead times across massive order volumes.
