IEC 61111 insulation Black rubber mat 3mm 4mm 5kv 10kv 20kv electrical rubber mat suppliers
Whatsapp: 008615222735180
P.H: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: 100% recycled rubber + Insulating Powder
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.5g/cm3
6. Hardness:60±5
7. Tensile strength: 3.5-3.8Mpa
8. Elongation: 230%
9. Certificate: IEC 61111

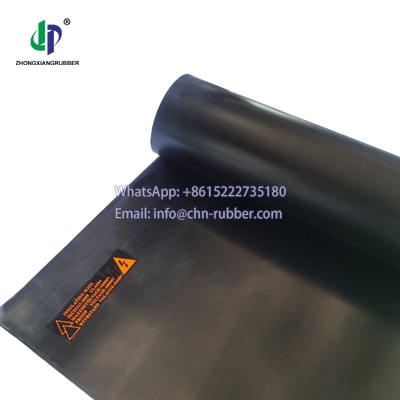

IEC 61111 insulation Black rubber mat
| Thickness mm | Gravity g/cm3 | Width m | weight kg/㎡ | Class ( 0-4) | AC Voltage （KV） | Proof Voltage ( KV ) | Withstand Voltage ( V ) |
| 3 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 4.5 | 0 | 1 | 5 | 10 |
| 4 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 6 | 0 | 1 | 5 | 10 |
| 5 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 7.5 | 0 | 1 | 5 | 10 |
| 6 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 9 | 0 | 1 | 5 | 10 |
| 3 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 4.5 | 1 | 7.5 | 10 | 20 |
| 4 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 6 | 1 | 7.5 | 10 | 20 |
| 5 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 7.5 | 1 | 7.5 | 10 | 20 |
| 6 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 9 | 1 | 7.5 | 10 | 20 |
| 7 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 10.5 | 2 | 17 | 20 | 30 |
| 8 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 12 | 2 | 17 | 20 | 30 |
| 9 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 13.5 | 3 | 26.5 | 30 | 40 |
| 10 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 15 | 3 | 26.5 | 30 | 40 |
| 11 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 16.5 | 3 | 26.5 | 30 | 40 |
| 12 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 18 | 4 | 36 | 40 | 50 |
| 13 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 19.5 | 4 | 36 | 40 | 50 |
| 14 | 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 21 | 4 | 36 | 40 | 50 |

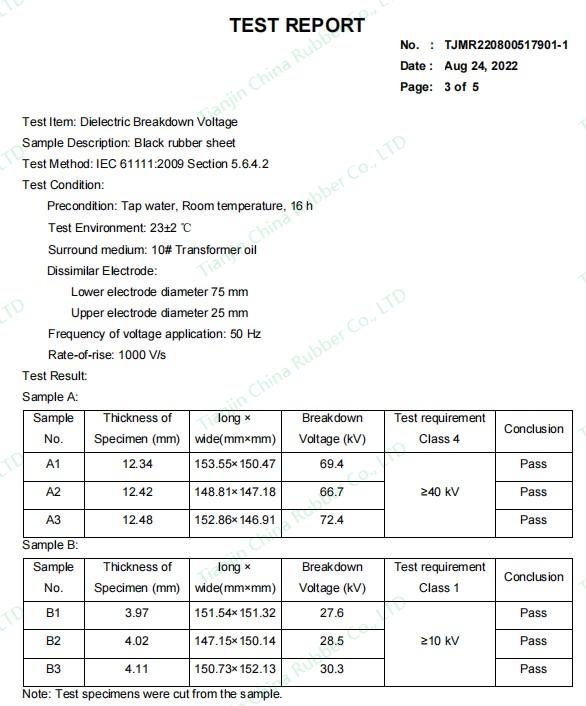

Data Sheet
 |
|
There are many different types of electrical insulation mat suppliers on the web. However, not all electrical mat suppliers are good. When you are looking for electrical Insulation Mat Suppliers, you want to make sure that you are finding a reputable one that can provide you with the best product. Here are some tips to help you find the best supplier: rubber sheet manufacturer 1. Do some online research. You can start with a simple Google search for Electrical Insulation Mat Suppliers. This will give you a good starting point for narrowing down your options, and there are plenty of quality suppliers to choose from. You see, you've found us. 2. Check online reviews. Once you have some options in mind, take the time to read online reviews, especially on wholesale or retail sites, which can help you get a better idea of what others think of the products and services offered by different vendors. 3. Compare prices. When you have several suppliers in mind, you should not only distinguish between them in terms of quality, but also spend time comparing them in terms of price. This will help you ensure you get the best deal possible. 4. Ask for advice. If you are around distributors or suppliers who have used electric rubber mats before, ask them for advice. They may be able to point you in the right direction and give you more professional advice. 5. Read the supplier's terms and conditions. Be sure to read the terms and conditions before you buy. This will help you understand the return policy and other important details. By following these tips, you should be able to find the best supplier of electric rubber pads to meet your needs.
|
