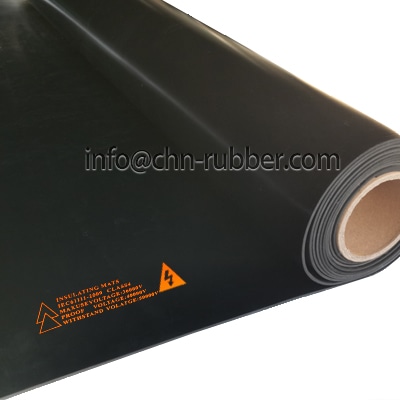

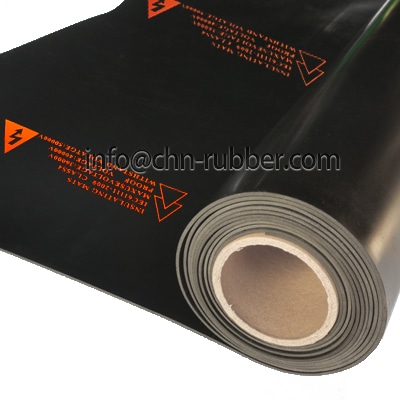

IEC 61111 matting electrical insulation mat for 11kv
IEC 61111 matting electrical insulation mat for 11kv IEC 61111 matting electrical insulation mat for 11kv

IEC 61111 matting electrical insulation mat for 11kv

Product ID : Insulation Mats-IEC 61111-12
Product Attributes :

Contact Us:

Whatsapp & P.H: 008615222735180

Email: info@chn-rubber.com

  1. Material:SBR 、NBR 、CR rubber + Insulating powder
  2. Tensile strength: 3.5-3.8Mpa
  3. Hardness:60±5Shore A
  4. Elongation:230%
  5. Gravity:1.5g/cm
Product Description

IEC 61111 matting electrical insulation mat for 11kv

IEC 61111 matting data sheet:

Class 0
Thickness Width Gravity Weight Class AC Voltage Proof Voltage Withstand Voltage
3mm 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M 1.5g/cm³ 4.5kgs/m³ 0 1KV 5KV 10KV
4mm 6kgs/m³ 0 1KV 5KV 10KV
5mm 7.5kgs/m³ 0 1KV 5KV 10KV
6mm 9kgs/m³ 0 1KV 5KV 10KV
Class 1
Thickness Width Gravity Weight Class AC Voltage Proof Voltage Withstand Voltage
3mm 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M 1.5g/cm³ 4.5kgs/m³ 1 7.5KV 10KV 20KV
4mm 6kgs/m³ 1 7.5KV 10KV 20KV
5mm 7.5kgs/m³ 1 7.5KV 10KV 20KV
6mm 9kgs/m³ 1 7.5KV 10KV 20KV
Class 2
Thickness Width Gravity Weight Class AC Voltage Proof Voltage Withstand Voltage
7mm 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M 1.5g/cm³ 10.5kgs/m³ 2 17KV 20KV 30KV
8mm 12kgs/m³ 2 17KV 20KV 30KV
Class 3
Thickness Width Gravity Weigth Class AC Voltage Proof Voltage Withstand Voltage
9mm 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M 1.5g/cm³ 13.5kgs/m³ 3 26.5KV 30KV 40KV
10mm 15kgs/m³ 3 26.5KV 30KV 40KV
11mm 16.5kgs/m³ 3 26.5KV 30KV 40KV
Class 4
Thickness Width Gravity Weigth Class AC Voltage Proof Voltage Withstand Voltage
12mm 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M 1.5g/cm³ 18kgs/m³ 4 36KV 40KV 50KV
13mm 19.5kgs/m³ 4 36KV 40KV 50KV
14mm 21kgs/m³ 4 36KV 40KV 50KV

Electrical insulation mat for 11kv description:

IEC 61111 is a standardized electrical insulation mat that is specifically designed for use with electrical insulation systems. This IEC 61111 matting is widely used in industries and workplaces where there is a risk of electrical shocks or contact with live electric currents.

The IEC 61111 matting is made from high-quality rubber material that provides excellent electrical insulation properties. It is designed to withstand high voltage levels, making it ideal for use in electrical substations, power plants, and other high-voltage installations. The matting is also resistant to various environmental factors such as oil, chemicals, and moisture, ensuring its durability and longevity.

One important feature of the IEC 61111 matting is its slip-resistant surface, which helps to prevent accidents and injuries caused by slipping or tripping. This makes it suitable for use in areas where there may be floor contaminants or wet conditions.

In addition to its electrical insulation capabilities, the electrical insulation mat for 11kv also provides a comfortable and ergonomic surface for workers to stand on for extended periods. This is especially beneficial for those who work in environments where they need to be stationed near electrical equipment or machinery for long durations.

Overall, the electrical insulation mat for 11kv is a crucial safety measure in electrical installations that helps to protect workers from the risks associated with electrical shocks and currents. Its high-quality construction and adherence to international standards make it a reliable and effective solution for ensuring electrical safety in various industrial settings.

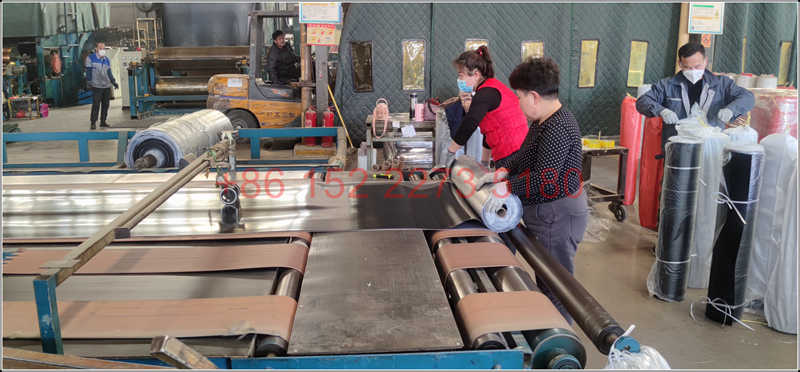

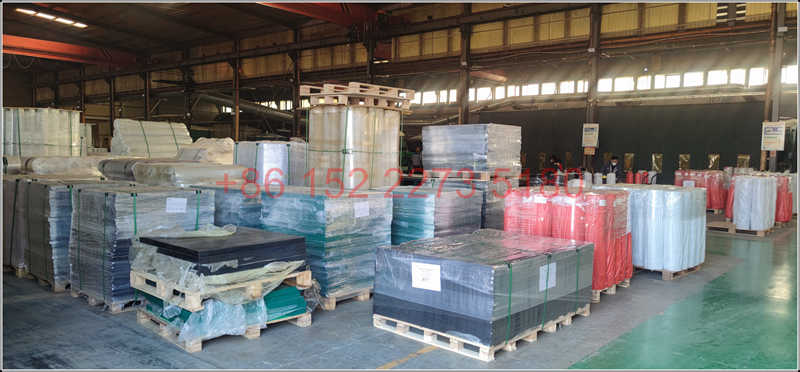

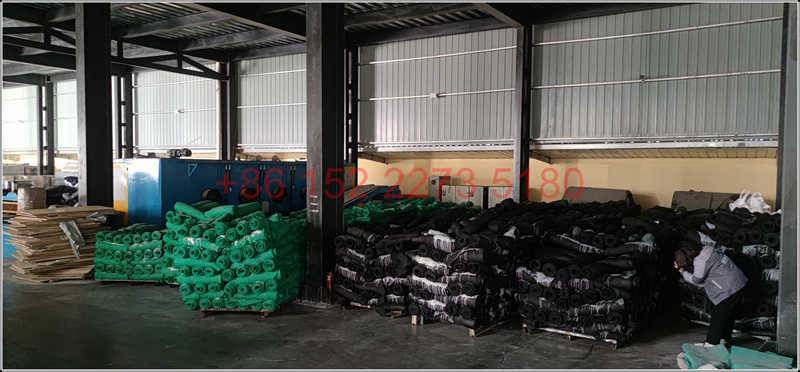

Image:

electrical insulation mat for 11kv

electrical insulation mat for 11kv

electrical insulation mat for 11kv
