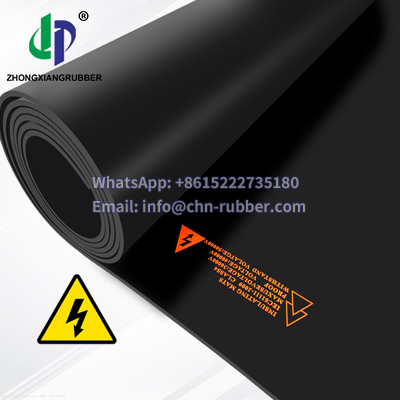

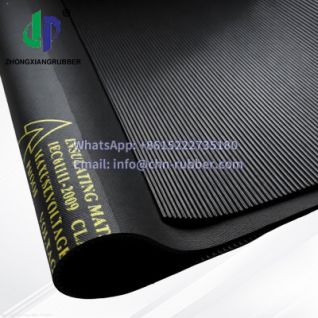

IEC 61111:2009 Insulation rubber sheet electrical saftey insulation roll
IEC 61111:2009 Insulation rubber sheet electrical saftey insulation roll IEC 61111:2009 Insulation rubber sheet electrical saftey insulation roll IEC 61111:2009 Insulation rubber sheet electrical saftey insulation roll

IEC 61111:2009 Insulation rubber sheet electrical saftey insulation roll

Product ID : ZXZRS20102EI
Product Attributes :

Reference Standard: ASTM standard

Quality Certification: SGS RoHS2.0 REACH IEC 61111:2009

Thickness: 3mm -15mm; Thickness over 15mm, available in sheet form

Specification (W/L):

Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs

Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request

Color: Black

Packing Information: Regular / Up to your choice

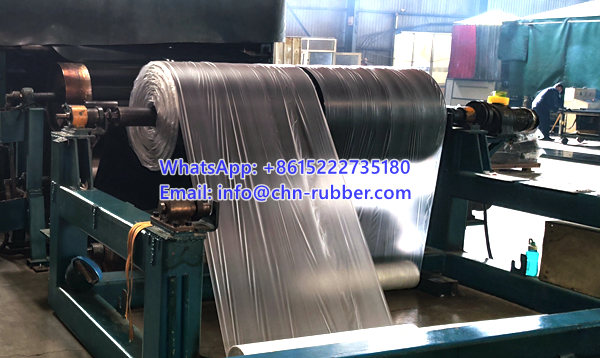

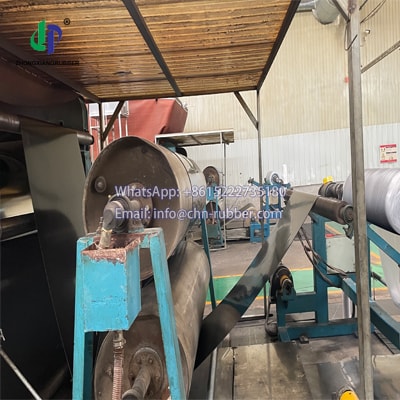

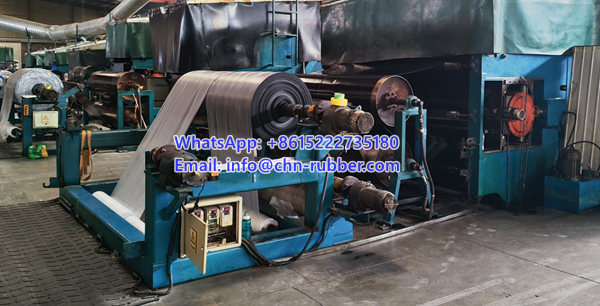

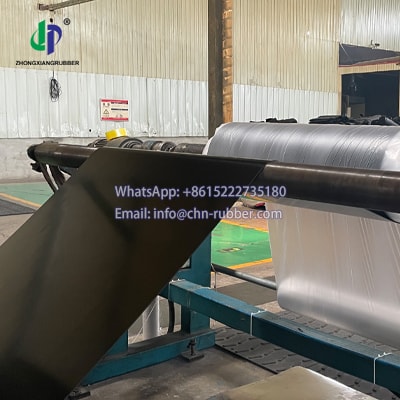

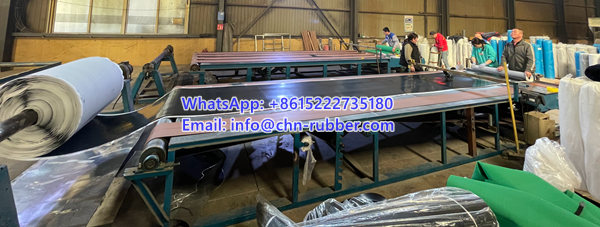

Packed with plastic film.

Packed with plastic film and with PP woven bag.

Wooden pallet.

According to the customer request, fixed-length or heavy package.

Product Supply Form: Roll / Sheet or Plate / Strip

rubber insulation roll,

Get more information:

Email: info@chn-rubber.com

WhatsApp & P .H & Wechat: 008615222735180

Product Description

The electrical insulation rubber sheet produced by Tianjin China Rubber Co., Ltd has passed IEC 61111:2009 Class 0 to Class 4 and ASTM related certifications, and is designed for high and low voltage safety of critical electrical systems.

KEY FEATURES:

  • Ultra-high dielectric strength – multi-layer vulcanization ensures that the substation mat is resistant to puncture
  • Tracking resistance – prevents carbonization in humid environments.
  • Ozone and UV stability – no surface cracking, suitable for outdoor switchgear insulation.

INSUALATING RUBBER PERFORMANCE & SPECIFICATIONS

INSULATING RUBBER SHEET TECHNICAL PARAMETERS
Code Specific Gravity Hardness (+/-5) Tensile Strength Elongation at break Colour Finish Type
g/cm³ Shore A Mpa (min) %
STANSDARD ASTM D397 ASTM D2240 ASTM D412 ASTM D412 --- ---
ZXZRS20102EI 1.2+/-0.05 45 15 500 Black Smooth in both sides
ZXZRS20102EI 1.3+/-0.05 60 8 350
ZXZRS20102EI 1.4+/-0.05 65 5 260
ZXZRS20102EI 1.5+/-0.05 65 3 200
ZXZRS20102EI 1.7+/-0.05 75 2 160
Note: 1MPa =10.2 Kg/cm²  1N/mm =1.02 Kg/cm



Insulation Class
Thickness/mm Class AC Voltage Proof Voltage Withstand Voltage
3mm 0 1KV 5KV 10KV
4mm 0 1KV 5KV 10KV
5mm 0 1KV 5KV 10KV
6mm 0 1KV 5KV 10KV
3mm 1 7.5KV 10KV 20KV
4mm 1 7.5KV 10KV 20KV
5mm 1 7.5KV 10KV 20KV
6mm 1 7.5KV 10KV 20KV
7mm 2 17KV 20KV 30KV
8mm 2 17KV 20KV 30KV
9mm 3 26.5KV 30KV 40KV
10mm 3 26.5KV 30KV 40KV
11mm 3 26.5KV 30KV 40KV
12mm 4 36KV 40KV 50KV
13mm 4 36KV 40KV 50KV
14mm 4 36KV 40KV 50KV



SPECIFICATION
Thickness Dimension Weight KGS/m²
mm m 1.2+/-0.05 1.3+/-0.05 1.4+/-0.05 1.5+/-0.05 1.7+/-0.05
3 1.2 x10 40.32  43.68  47.04  50.40  57.12
4 1.2 x10 54.72  59.28  63.84  68.40  77.52
5 1.2 x10 69.12  74.88  80.64  86.40  97.92
6 1.2 x10 83.52  90.48  97.44  104.40  118.32
7 1.2 x10
97.92 106.08 114.24 122.4 138.72
8 1.2 x10 112.32  121.68  131.04  140.40  159.12
9 1.2 x10
126.72 137.28 147.84 158.40 179.52
10 1.2 x10 141.12  152.88  164.64  176.40  199.92
11 1.2 x10
155.52 168.48 181.44 194.40 220.32
12 1.2 x10 169.92  184.08  198.24  212.40  240.72
13 1.2 x10
184.32 199.68 215.04 230.40 261.12
14 1.2 x10
198.72 215.28 231.84 248.40 281.52
15 1.2 x10 213.12  230.88  248.64  266.40  301.92

* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.

* Please ensure the product meets your application specification prior to order placement.

TARGET APPLICATIONS

  1. 1. High voltage substation: 5mm thick operator floor pads.
  2. 2. Railway catenary system: insulator pad rolls.
  3. 3. Wind turbine switchgear
  4. 4. Electric vehicle charging station
