Color: Black / Grey
Material: SBR
Thickness:3-8mm

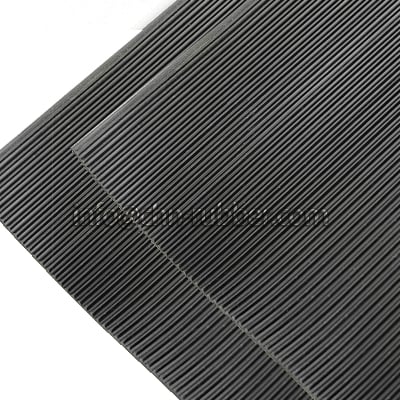

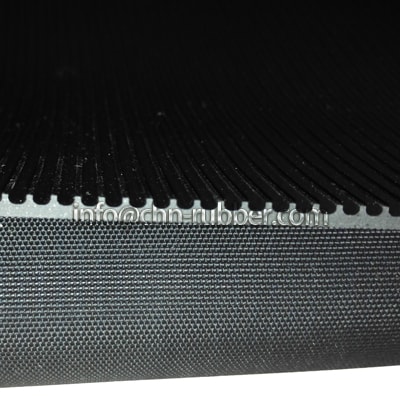

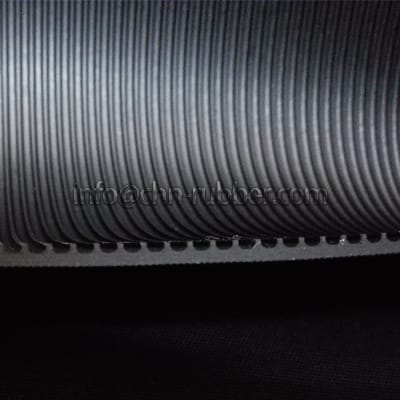

Surface: Fine rib & texture back
Elongation:200%
Hardness:65+/-5 ShoreA
Size:This can be customized
Thickness/mm | Width/m | Gravity g/cm³ | Weight KGS/m³ |
3mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 4.5 |
4mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 6 |
5mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 7.5 |
6mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 9 |
7mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 10.5 |
8mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 12 |

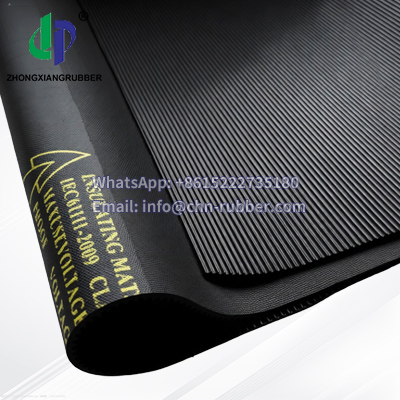

Electrical insulation rubber mat is produced in strict accordance with the IEC 61111-2009 standard, the product is of high quality, suitable for most high and low voltage places, and physical mechanical performance is good, with excellent insulation performance, and can work in an environment with high air intermediary electrical coefficients that are dry-35 ~+100°C.
Standard | Thickness | Class | AC Voltage (KV) | Proof Voltage (KV) | Withstand Voltage ( KV ) |
IEC 61111-2009 | 3mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 4mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 5mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 6mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 3mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 4mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 5mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 6mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 7mm | 2 | 17KV | 20KV | 30KV |
IEC 61111-2009 | 8mm | 2 | 17KV | 20KV | 30KV |
Electrical insulation rubber mat is a type of protective flooring that is specifically designed to minimize the risk of electric shock. These mats are made from high-quality rubber, which acts as an excellent insulator, preventing the conduction of electrical current. This is particularly important in areas where there is a significant presence of electrical equipment or machinery. One popular variant of electrical saftey rubber mats is the fine rib rubber mat. These mats feature a unique ribbed pattern on their surface, which provides added traction and slip resistance. This is crucial in environments where there may be moisture or fluid spills, as it reduces the chance of accidents and injuries. The main purpose of using insulation rubber matting, such as the fine rib rubber mat, is to create a safe working environment for individuals who are exposed to electricity regularly. These mats are commonly found in electrical substations, power plants, control rooms, and other similar locations where the risk of electrical shock is high. In addition to their insulating properties, electrical insulation rubber mats also offer other benefits. They are highly durable and designed to withstand heavy use and foot traffic, making them a long-lasting investment. They are also resistant to various chemicals and oils, ensuring they can withstand exposure to different substances commonly found in industrial settings. Overall, electrical insulation rubber mats, particularly the fine rib rubber mat, are an essential safety measure in areas where electrical hazards are present. They provide a reliable barrier between individuals and electricity, minimizing the risks of electric shock and ensuring the well-being of workers in these environments. |
