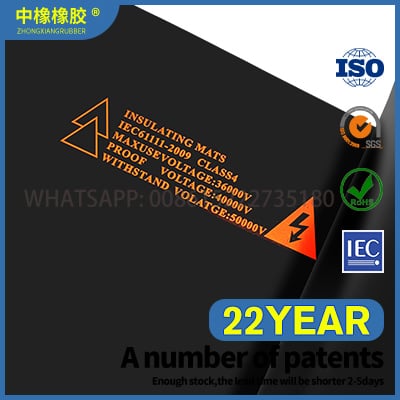

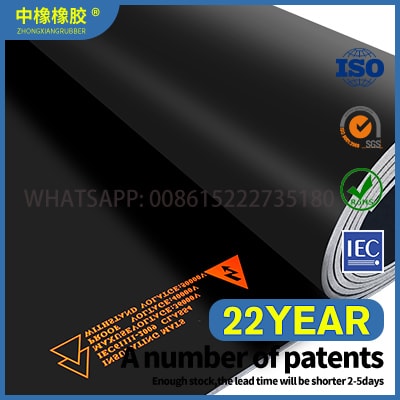

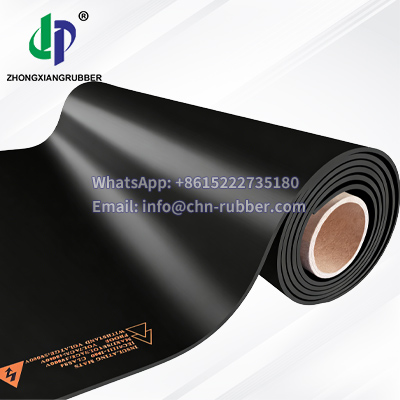

IEC 61111:2009 5mm 1.5g/cm3 black rubber roll electrical rubber mat
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber + Insulating Powder
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.5g/cm3
6. Hardness:60±5
7. Tensile strength: 3.5-3.8Mpa
8. Elongation: 230%
9. Certificate: IEC 61111:2009
IEC 61111-2009 Electrical Rubber Mat Suppliers - Insulation Rubber Sheet
| Thickness MM | Gravity | Width M | Weight KGS/㎡ | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 3 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 4.5 | 0 | 1KV | 5KV | 10KV |
| 4 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 6 | 0 | 1KV | 5KV | 10KV |
| 5 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 7.5 | 0 | 1KV | 5KV | 10KV |
| 6 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 9 | 0 | 1KV | 5KV | 10KV |
| 3 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 4.5 | 1 | 7.5KV | 10KV | 20KV |
| 4 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 6 | 1 | 7.5KV | 10KV | 20KV |
| 5 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 7.5 | 1 | 7.5KV | 10KV | 20KV |
| 6 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 9 | 1 | 7.5KV | 10KV | 20KV |
| 7 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 10.5 | 2 | 17KV | 20KV | 30KV |
| 8 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 12 | 2 | 17KV | 20KV | 30KV |
| 9 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 13.5 | 3 | 26.5KV | 30KV | 40KV |
| 10 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 15 | 3 | 26.5KV | 30KV | 40KV |
| 11 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 16.5 | 3 | 26.5KV | 30KV | 40KV |
| 12 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 18 | 4 | 36KV | 40KV | 50KV |
| 13 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 19.5 | 4 | 36KV | 40KV | 50KV |
| 14 | 1.5G/cm3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 21 | 4 | 36KV | 40KV | 50KV |

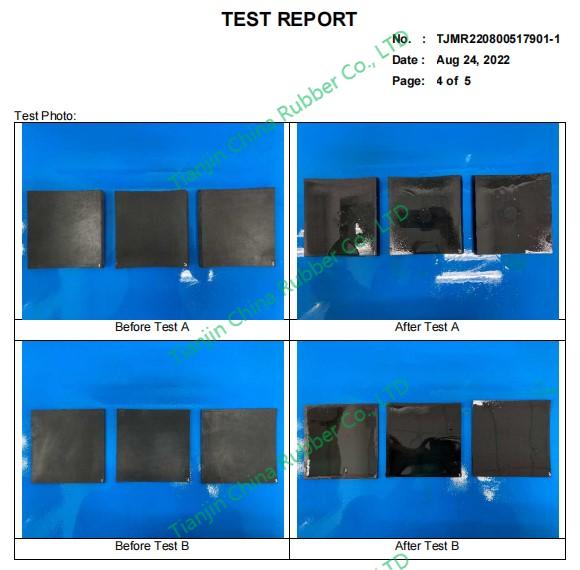

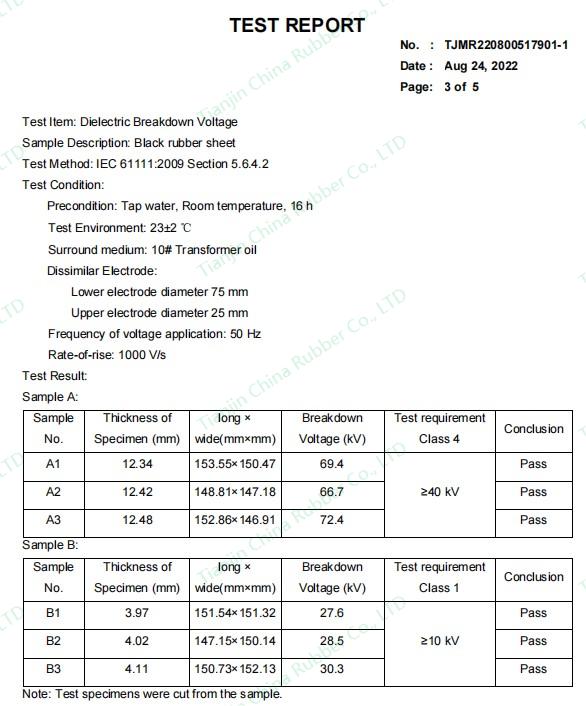

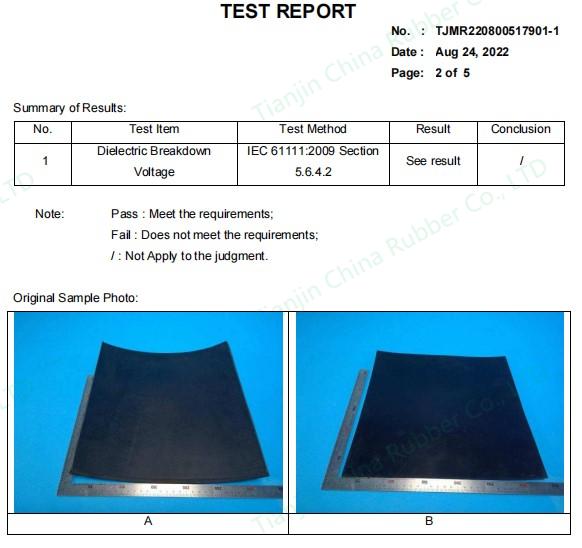

IEC 61111 TEST REPORT
As a electrical rubber mat suppliers
We are electrical rubber mat suppliers from China, with more than 20 years of production experience, 1.5g/cm ³ the black insulating rubber mat, which has passed the insulation test of the international standard IEC 61111:2009, is usually used in power distribution rooms, power plants, substations, etc. to protect the safety of personnel.
The insulating electrical rubber mat we produce are made of high-quality composite rubber materials, which have good mechanical properties and excellent insulation. Tianjin China Rubber Co., Ltd. produces solid rubber, not most foam or foamed rubber in the market. They have good wear resistance, long service time, waterproof surface and are not easy to penetrate.
The insulating mat can avoid most dangerous accidents, such as the ground of the power distribution room, the substation site, and some live workbenches, which can effectively prevent personnel from personal danger in close contact with them. As electrical rubber mat suppliers, we can customize rubber mats of any specification and parameter, or cut them into any shape, whether for individuals or enterprises, engineering projects, Can provide perfect solutions.
Are you looking for electrical rubber mat suppliers? Each of our electrical insulation products will undergo quality testing before packaging to ensure that they are qualified before delivery to customers. This is our electrical insulation testing certificate>>. If you need a clearer report, you can contact us to obtain it. Our insulation products have been tested by IEC 61111:2009, so you don't need to worry about whether there will be quality problems
