Electrical safety rubber mat for electrical panel room IEC 61111
Contact Us:
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
Material：SBR rubber material
Tensile strength: 3.5-3.8Mpa
Hardness：60±5Shore A
Elongation：230%
Gravity：1.5g/cm³
Electrical safety rubber mat for electrical panel room IEC 61111-2009
Electrical safety rubber mat for electrical panel data sheet:
Rubber mat for electrical room Class 0
| Thickness | Width | Gravity | Weight | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 3mm | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 1.5g/cm³ | 4.5kgs/m³ | 0 | 1KV | 5KV | 10KV |
| 4mm | 6kgs/m³ | 0 | 1KV | 5KV | 10KV | ||
| 5mm | 7.5kgs/m³ | 0 | 1KV | 5KV | 10KV | ||
| 6mm | 9kgs/m³ | 0 | 1KV | 5KV | 10KV |
Rubber mat for electrical room Class 1
| Thickness | Width | Gravity | Weight | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 3mm | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 1.5g/cm³ | 4.5kgs/m | 1 | 7.5KV | 10KV | 20KV |
| 4mm | 6kgs/m³ | 1 | 7.5KV | 10KV | 20KV | ||
| 5mm | 7.5kgs/m³ | 1 | 7.5KV | 10KV | 20KV | ||
| 6mm | 9kgs/m³ | 1 | 7.5KV | 10KV | 20KV |
Rubber mat for electrical room Class 2
| Thickness | Width | Gravity | Weight | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 7mm | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 1.5g/cm³ | 10.5kgs/m³ | 2 | 17KV | 20KV | 30KV |
| 8mm | 12kgs/m³ | 2 | 17KV | 20KV | 30KV |
Rubber mat for electrical room Class 3
| Thickness | Width | Gravity | Weigth | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 9mm | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 1.5g/cm³ | 13.5kgs/m³ | 3 | 26.5KV | 30KV | 40KV |
| 10mm | 15kgs/m³ | 3 | 26.5KV | 30KV | 40KV | ||
| 11mm | 16.5kgs/m³ | 3 | 26.5KV | 30KV | 40KV |
Rubber mat for electrical room Class 4
| Thickness | Width | Gravity | Weigth | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 12mm | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2.0M | 1.5g/cm³ | 18kgs/m³ | 4 | 36KV | 40KV | 50KV |
| 13mm | 19.5kgs/m³ | 4 | 36KV | 40KV | 50KV | ||
| 14mm | 21kgs/m³ | 4 | 36KV | 40KV | 50KV |
Electrical safety rubber mat for electrical panel description：
Electrical safety rubber mat is an indispensable component in electrical panel room, particularly in compliance with the IEC 61111-2009 standard. This standard ensures that the mat is made from high-quality rubber material, which possesses excellent electrical insulating properties. The primary purpose of this electrical safety rubber mat for electrical panel is to provide protection against electrical shock for individuals or workers working in close proximity to energized electrical equipment. This specialized rubber mat effectively prevents the flow of electric current through its surface, thereby minimizing the risk of electrocution.
Rubber mat for electrical room acts as a reliable safeguard, especially in situations where accidental contact with live wires or equipment may occur. Additionally, the electrical safety rubber mat offers an additional layer of insulation against any potential electrical hazards, reducing the likelihood of accidents or injuries. It also serves to protect the integrity and longevity of the electrical panel room, as it acts as a shield against wear and tear caused by daily foot traffic or other damaging elements. Thus, the IEC 61111-2009 compliant electrical safety rubber mat for electrical panel plays a vital role in ensuring overall electrical safety and protecting both personnel and equipment in electrical panel rooms.

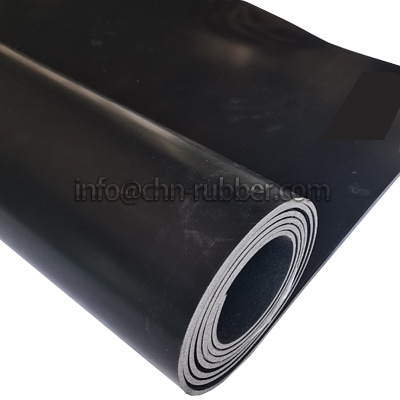

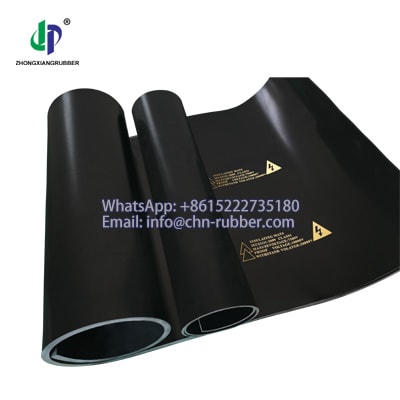

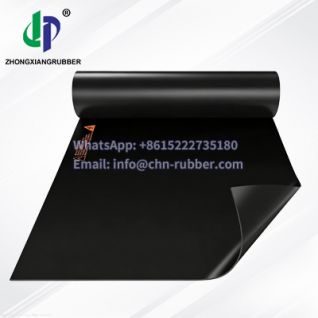

Electrical safety rubber mat for electrical panel image:
