Thickness/mm | Width/m | Gravity g/cm³ | Weight KGS/m³ |
3mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 4.5 |
4mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 6 |
5mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 7.5 |
6mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 9 |
7mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 10.5 |
8mm | 1m/1.2m/1.4m/1.5m/1.6m | 1.5 | 12 |
Standard | Thickness | Class | AC Voltage (KV) | Proof Voltage (KV) | Withstand Voltage ( KV ) |
IEC 61111-2009 | 3mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 4mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 5mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 6mm | 0 | 1KV | 5KV | 10KV |
IEC 61111-2009 | 3mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 4mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 5mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 6mm | 1 | 7.5KV | 10KV | 20KV |
IEC 61111-2009 | 7mm | 2 | 17KV | 20KV | 30KV |
IEC 61111-2009 | 8mm | 2 | 17KV | 20KV | 30KV |

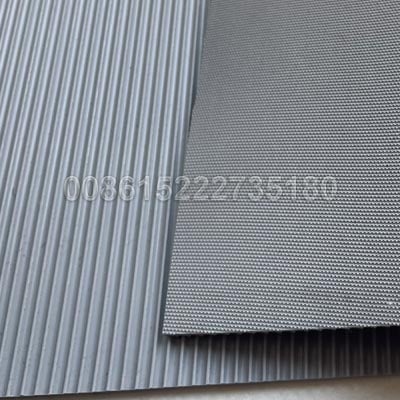

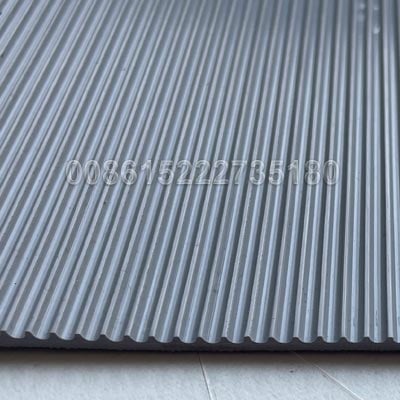

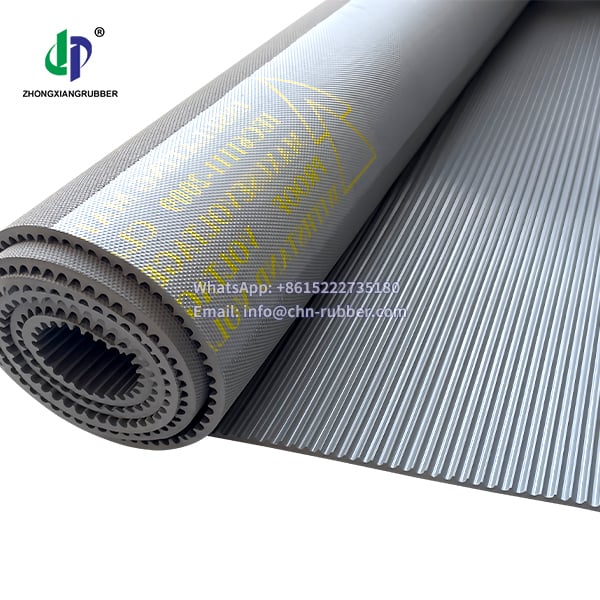

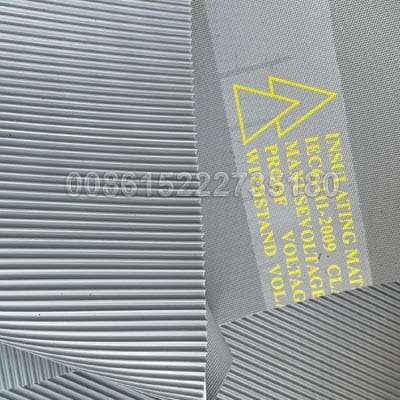

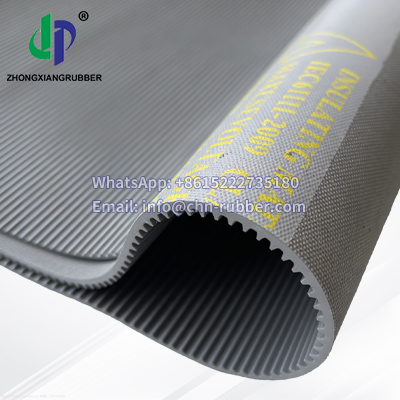

Fine rib iec 61111 2009 electrical isolation mat is a specialized type of mat that is designed to provide protection against electrical hazards. These mat insulation is typically made from durable and non-conductive materials, such as rubber, to ensure maximum safety in areas where there is a risk of electric shock or current leakage. The fine rib texture on the surface of the mat not only enhances its durability and longevity but also provides better traction and grip for individuals walking on it. This is particularly important in settings where the mat may be exposed to liquids or other slippery substances, as it helps to prevent accidents and promote stability.
Additionally, the electrical isolation properties of these mats are crucial in preventing electrical currents from passing through and potentially causing harm to people or equipment. As a result, the use of fine rib electrical isolation mats is essential in industries such as manufacturing, construction, and electrical maintenance, where workers are regularly exposed to electrical equipment or environments. These mat insulation offer a reliable and effective solution for reducing the risk of electrical accidents and ensuring the safety of individuals in potentially hazardous work areas.
