PRODUCT
Oil and gas engineering uses viton rubber sheets
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: Viton rubber
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.95g/cm3
6. Hardness:73±5
7. Tensile strength: 8.1Mpa
8. Elongation: 500%
9. Heat temperature resistant ( long time: 200℃）
10. Heat temperature resistant (short time: 230℃）
11. Instantaneous temperature （250℃）
12. Low Temperature Resistant :- 30 ℃

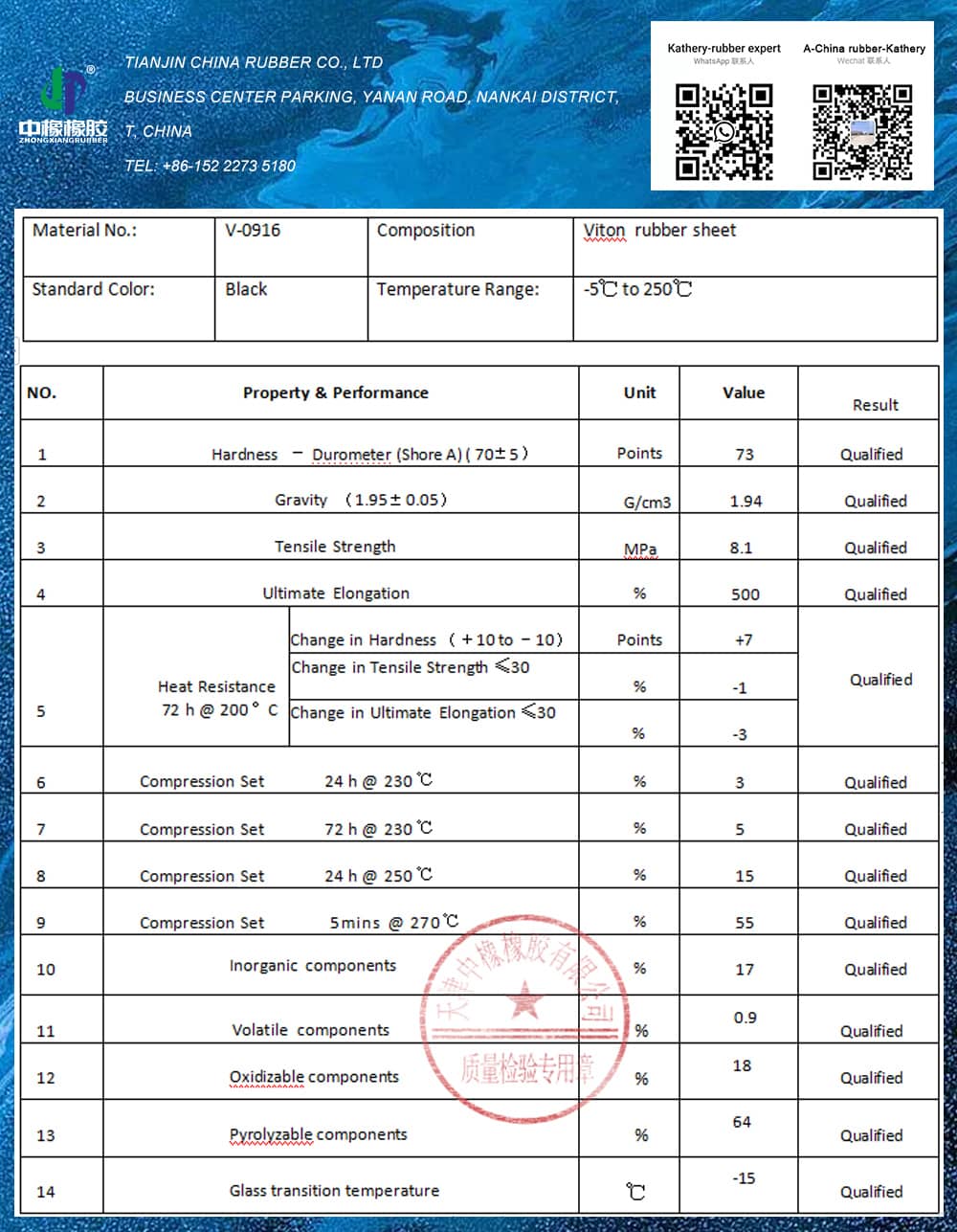

Viton rubber sheets data sheet:
| Thickness mm | Width m | Gravity g/cm³ | Weight KG/㎡ | Chemical Specifications | Application | |
| 1 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 1.95 | Vegetable Oil Resistant | Excellent | Oil & Gas projects |
| 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 2.925 | Animal Oil Resistant | Excellent | Gasket & Sealing |
| 2 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 3.9 | Petrol | Excellent | Heat temperature working Area |
| 3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 5.85 | Acid & Alkali Resistant | Excellent | Heater Treaments |
| 4 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 7.8 | Heat Temperature Resistant | Excellent | Acid & Alkali Resistant Application |
| 5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 9.75 | Low Temperature Resistant | Good | Petroleum Refining and Transportation |
| 6 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 11.7 | Lubricating oil | Excellent | Protecting pads |
| 8 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 15.6 | Fuel oil | Excellent | Gas and nuclear power plants |
| 10 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 19.5 | Aliphatic Treament | Excellent | Aliphatic & Aromatic hydrocarbons treament |
| 12 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 23.4 | Aromatic hydrocarbons treament | Excellent | Chemical Processing and Shipping |
| 15 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.95 | 29.25 | Automobile manufacturing industry | ||
Viton rubber sheets description:
Viton rubber sheets are made from a fluoroelastomer copolymer that is known for its resistance to high temperatures and chemicals. This type of rubber has a wide variety of uses, including in gaskets, seals, and O-rings. Viton rubber is also often used in the automotive and aerospace industries. Viton rubber sheets are made from a synthetic rubber compound that is known for its resistance to heat, chemicals, and oil. This material is often used in applications where high temperatures are a concern, such as in gaskets, seals, and O-rings. Viton rubber has excellent compression set resistance, meaning it will retain its shape and size after being subjected to repeated compression and decompression. It is also resistant to abrasion, making it an ideal choice for wear-resistant applications.
