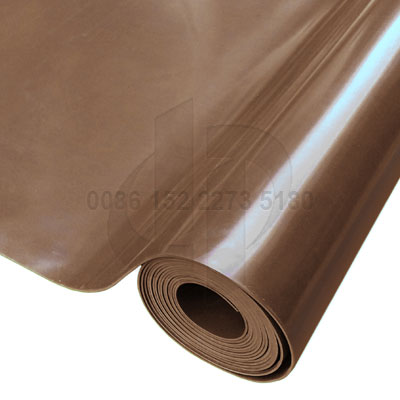

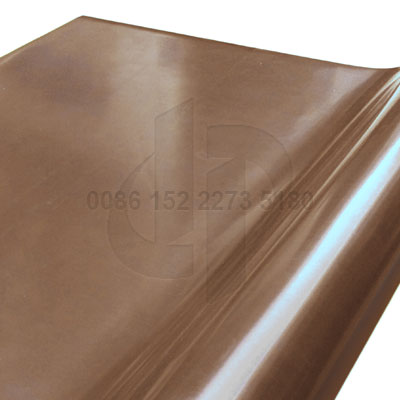

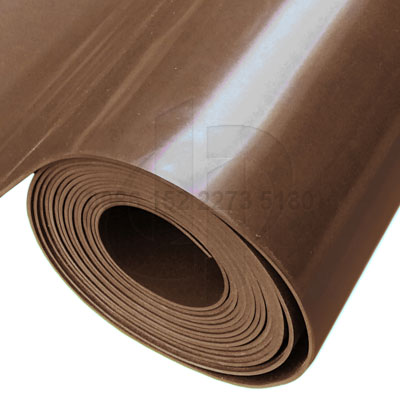

Brown 2.0g/cm³ high quality viton material rubber sheet
Whatsapp: 008615222735180
P.H: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: Viton rubber
2. Thickness:3mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 2.0g/cm3
6. Hardness:70±5
7. Tensile strength: 5-6Mpa
8. Elongation: 360%
9. Heat temperature resistant ( long time: 200℃）
10. Heat temperature resistant (short time: 230℃）
11. Instantaneous temperature （250℃）
12. Low Temperature Resistant :- 30 ℃
|
Thickness mm |
Gravity g/cm³ |
Width m |
weight KGS/㎡ |
Chemical Properties | Application | |
| 1 | 2.0 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.0 | Vegetable Oil Resistant | Excellent | Oil & Gas projects |
| 1.5 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
3 | Animal Oil Resistant | Excellent | Gasket & Sealing |
| 2 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
4 | Petrol | Excellent | heat temperature working Area |
| 3 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
6 | Acid & Alkali Resistant | Excellent | Heater Treaments |
| 4 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
8 | Heat Temperature Resistant | Excellent | Acid & Alkali Resistant Application |
| 5 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
10 | Low Temperature Resistant | Good | Petroleum Refining and Transportation |
| 6 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
12 | Lubricating oil | Excellent | Protecting pads |
| 8 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
16 | Fuel oil | Excellent | Gas and nuclear power plants |
| 10 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
20 | Aliphatic Treament | Excellent | Aliphatic & Aromatic hydrocarbons treament |
| 12 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
24 | Aromatic hydrocarbons treament | Excellent | Chemical Processing and Shipping |
| 15 | 2.0 |
1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M |
30 | Automobile manufacturing industry | ||
China viton rubber sheet manufacturer description:
What is Viton Rubber?
The fluorine rubber sheet with a medium hardness of 70±5°Shore A and a specific gravity of 2.0g/cm³ is a high-quality synthetic rubber that is used in a wide range of industries. We provide it in the form of rolls, sheets, thick sheets, and rectangular shapes. , Viton is a high-standard rubber sheet, it has excellent resistance to daily acid and alkali substances, corrosive chemicals, oil gas, diesel oil, grease, even higher than NBR, EPDM, CR, etc. However, fluorine rubber sheets are not suitable for ketone industries.
In addition to the above qualities, fluororubber also has excellent weather resistance, excellent weather resistance, can be safely used indoors and outdoors, has a long service life, and has good resistance to sunlight, ultraviolet rays, and odors, especially for outdoor engineering projects. , you can consider using FKM, of course, it also depends on the actual economic cost.
The fluororubber sheet we produce can work continuously at Heat temperature resistant 200°C and Low Temperature Resistant - 30°C for a long time without being affected, and the temperature can reach 230°C~250°C even for a short moment, which is very suitable for some high temperature operations.
Viton rubber is not only excellent in these, its physical properties are also excellent, good tensile strength and flexibility, to ensure that it will not appear cracks during use, nor will it appear due to bending, waterproof and wear-resistant, and the surface is extremely smooth. Will be used in aerospace, oil and gas industries because they are not as demanding on products as other industries.
