Certified FDA SGS / RoHS2.0 / REACH compliant, Viton gasket sheets provide unmatched reliability for critical sealing applications in corrosive environments. As a trusted Viton sheet manufacturers, we use FKM polymers plus other high-purity raw materials to ensure excellent chemical stability and thermal performance over a service range of -30°C to +230°C (-22°F to +446°F).

Optimized for extended exposure to fuels, oils, acids, and industrial solvents, these Viton rubber sheets excel in pharmaceutical processing, food-grade equipment, and high-temperature hydraulic systems. Tianjin China Rubber Co., Ltd offers thicknesses ranging from 1 mm to 100 mm and standard widths of 1.5 meters (along with other common specifications), maintaining consistent resistance to compression set even under continuous dynamic loads.

While Viton rubber sheets have excellent resistance to hydrocarbons, they are not recommended for use in ketone-based media. Each batch of products undergoes rigorous quality control testing, including ASTM as well as in-house, to achieve tensile strength and elongation to meet aerospace grade specifications. Custom die-cutting and roll lengths are supported for special application scenarios.

KEY FEATURES

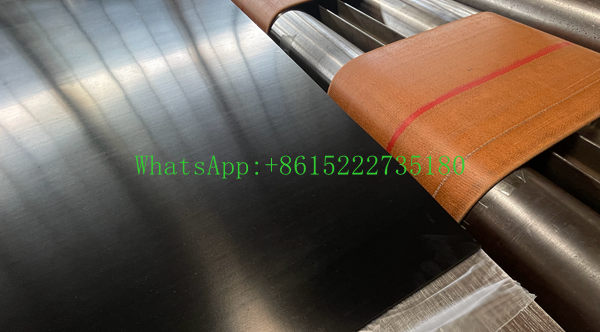

• Anti-Stick Surface Treatment – ​​Proprietary calendaring process produces an ultra-smooth surface that reduces sticking during gasket installation and replacement in high-pressure sealing systems.
• Low Compression Set – Engineered polymer network maintains dimensional stability under sustained compression, extending service life in bolted flange applications.
• Custom Hardness Options – Precisely controlled vulcanization process allows hardness to be adjusted for vibration damping or static sealing situations.
• Excellent hydrocarbon and chemical resistance.
• Excellent corrosion resistance.
• Excellent ozone resistance, anti-aging.
• Excellent acid resistance.

FKM RUBBER SHEET PERFORMANCE & SPECIFICATIONS

FKM RUBBER SHEET TECHNICAL PARAMATERS
Code	Specific Gravity	Hardness (+/-5)	Tensile Strength	Elongation at Break	Colour	Finish Type
	g/cm³	Shore A	Mpa	(min) %
STANDARD	ASTM D397	ASTM D2240	ASTM D412	ASTM D412	---	---
ZXZRS20101V	2.0+/-0.05	70	5-6	250	Black	Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture
ZXZRS20201V	2.0+/-0.05	70	5-6	250	Red
ZXZRS20301V	2.0+/-0.05	70	5-6	250	White
ZXZRS20601V	2.0+/-0.05	70	5-6	250	Brown
ZXZRS20801V	2.0+/-0.05	70	5-6	250	Yellow
Note: 1MPa =10.2 Kg/cm²  1N/mm =1.02 Kg/cm
SPECIFICATION
Item	Thickness	Width	Length	Insertion		Weight
	mm	m	m	Material	Layers	KGS/m²	LB/ft²
1	1	Standard width	5m/10m/15m/20m	Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas	/	24	4.92
2	1.5	Standard width	5m/10m/15m/20m		/	39	7.99
3	1.7	Standard width	5m/10m/15m/20m		1PLY	45	9.22
4	2	Standard width	5m/10m/15m/20m		1PLY	54	11.06
5	3	Standard width	5m/10m/15m/20m		1PLY	84	17.20
6	4	Standard width	5m/10m/15m/20m		1PLY	114	23.55
7	5	Standard width	5m/10m/15m/20m		2PLY	144	29.49
8	6	Standard width	5m/10m/15m/20m		3PLY	174	35.64
9	8	Standard width	5m/10m/15m/20m		4PLY	234	47.92
10	10	Standard width	5m/10m/15m/20m		5PLY	294	60.21
11	12	Standard width	5m/10m/15m/20m		8PLY	354	72.50
12	15	Standard width	5m/10m/15m/20m		10PLY	444	90.93
13	20	Standard width	5m/10m/15m/20m		≥10PLY	96	19.66
14	25	Standard width	5m/10m/15m/20m		≥10PLY	120	24.58
15	30	Standard width	5m/10m/15m/20m		≥10PLY	144	29.49
16	50	Standard width	5m/10m/15m/20m		≥10PLY	240	49.15

*  Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.

* Please ensure the product meets your application specification prior to order placement.

Insertion materials:

Nylon canvas	Mesh fabric	Nylon mesh fabric	Encrypted canvas

POTENTIAL APPLICATIONS & INDUSTRIES

1. 1. Chemical Processing Systems – Sealing critical joints in acid alkylation units, chlorine compressors, and sulfuric acid transfer lines where Viton gasket sheets resist concentrated inorganic acids and aggressive media.
2. 2. Aerospace Fuel Management – Custom-cut sheets for aviation fuel bladder liners and hydraulic pump seals.
3. 3. Automotive EV Thermal Management – High-purity FKM sheets for battery cooling plate gaskets and inverter seals.
4. 4. Geothermal Energy Infrastructure– Reinforced sheet solutions for downhole tool sealing brine environments.
