Rubber sheet NBR 1.7g/cm³ nitrile rubber rolls
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber
2.Grade : little / Low / Middle / Top Quality Oil Resistant
3. Thickness:1mm-100mm
4. Width: 3m max
5. Length: 10m/roll 20m/roll or as your request
6. Gravity: 1.7g/cm3
7. Hardness:65±5
8. Tensile strength: 2Mpa
9. Elongation: 150%
Rubber sheet NBR technical parameters
| Thickness / mm | Gravity G/cm3 | Width M | Weight KGS/㎡ | Reinforcement | Chemical Specifications | |
| 1 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 1.7 | / | Aliphatic Hydrocarbons | POOR |
| 1.5 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.55 | / | Aromatic Hydrocarbons | POOR |
| 1.7 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.89 | 1PLY | Lubricating Oils | POOR |
| 2 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 3.4 | 1PLY | Outdoor Exposure | REGULAR |
| 3 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 5.1 | 1PLY | Ozone Exposure | REGULAR |
| 4 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 6.8 | 1PLY | Diluted Acids | POOR |
| 5 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 8.5 | 2PLY MAX | Diluted Alkali | POOR |
| 6 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 10.2 | 3PLY MAX | Vegitable Oil | REGULAR |
| 8 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 13.6 | 4PLY MAX | Animal Oil | REGULAR |
| 10 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 17 | 5PLY MAX | ||
| 12 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 20.4 | 8PLY MAX | ||
| 15 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 25.5 | 10PLY MAX | ||

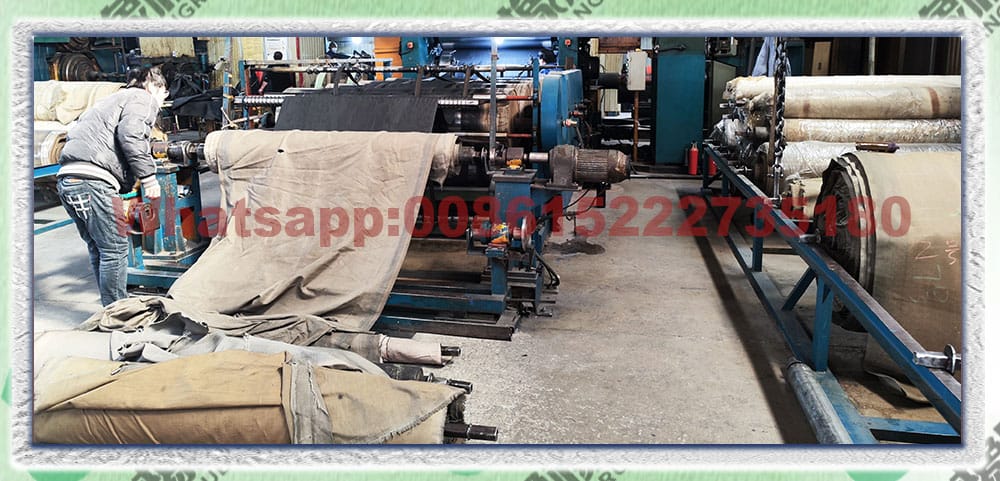

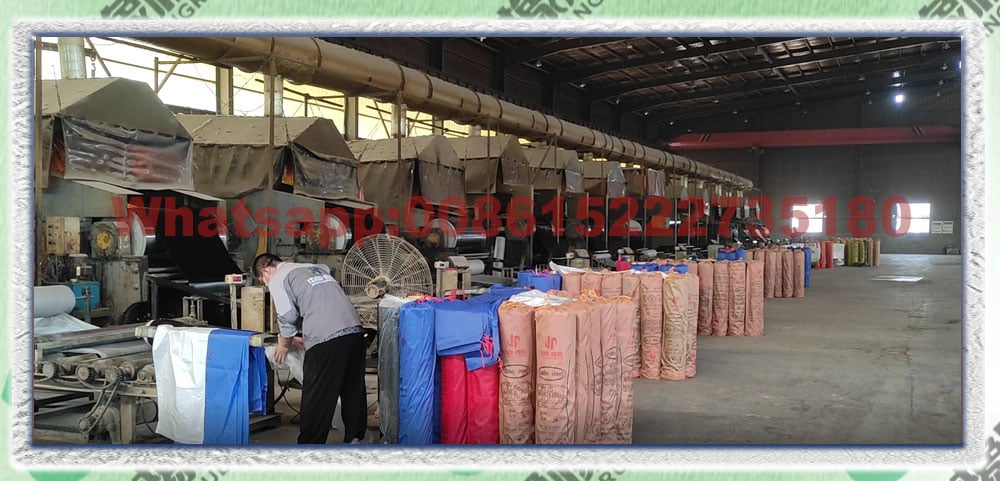

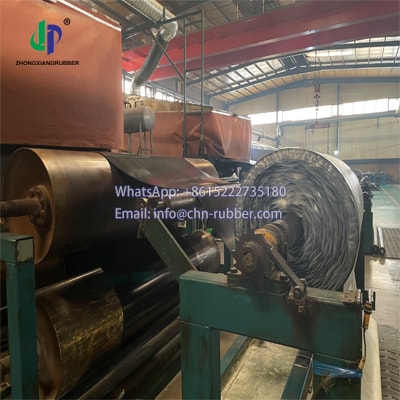

Rubber sheet NBR factory photo
Rubber sheet NBR description
There are many different types of rubber sheets available on the market, but one of the most common and versatile is NBR, or nitrile butadiene rubber. This rubber is used in everything from gaskets and seals to hoses and conveyor belts. Rubber sheet nbr is also used in many different types of automotive applications. NBR rubber sheet is a kind of synthetic rubber made from nitrile-butadiene elastomer. It has superior resistance to water, oils, and mechanical wear. NBR rubber sheet is commonly used in various applications such as gaskets, seals, and hoses.
