PRODUCT
Nitrile sheet NBR rubber 1.5g/cm³ low quality
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber
2.Grade : Low Quality Oil Resistant
3. Thickness:1mm-100mm
4. Width: 3m max
5. Length: 10m/roll 20m/roll or as your request
6. Gravity: 1.5g/cm3
7. Hardness:65±5
8. Tensile strength: 5Mpa
9. Elongation: 300%
10. with or without fabric reinforcement
Nitrile sheet technical parameters
| Thickness / mm | Gravity G/cm3 | Weight KGS/㎡ | Width / m | Reinforcement |
Chemical Specifications |
|
| 1 | 1.5 | 1.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | / | Aliphatic Hydrocarbons | EXCELLENT |
| 1.5 | 1.5 | 2.25 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | / | Aromatic Hydrocarbons | EXCELLENT |
| 1.7 | 1.5 | 2.55 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Lubricating Oils | EXCELLENT |
| 2 | 1.5 | 3 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Outdoor Exposure | EXCELLENT |
| 3 | 1.5 | 4.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Ozone Exposure | EXCELLENT |
| 4 | 1.5 | 6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Diluted Acids | Regular |
| 5 | 1.5 | 7.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 2PLY | Diluted Alkali | Regular |
| 6 | 1.5 | 9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 3PLY | Vegitable Oil | EXCELLENT |
| 8 | 1.5 | 12 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 4PLY | Animal Oil | EXCELLENT |
| 10 | 1.5 | 15 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 5PLY | Diesel Fuel | EXCELLENT |
| 12 | 1.5 | 18 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 8PLY | Petrol Gasoline | EXCELLENT |
| 15 | 1.5 | 22.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 10PLY | ||

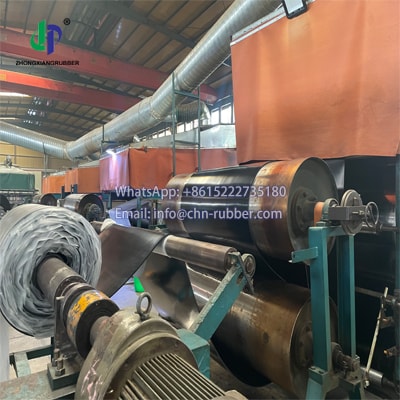

Nitrile sheet factory photo
Nitrile sheet description
Nitrile sheet gaskets are used in a variety of applications where resistance to fuel, oil, and grease is important. These gaskets are also resistant to abrasion and are often used in automotive applications.
NBR sheet rolls are an essential tool in any industry that relies on rubber products. Made of Nitrile Butadiene Rubber, these rolls provide a consistent and reliable source of high-quality rubber that can be used for a variety of applications.
From gaskets and seals to hoses and tubing, NBR sheet rolls can be cut to fit any need. And because they are made of such durable material, they can withstand even the most demanding industrial applications.
If your business relies on rubber products, NBR sheet rolls are an essential part of your operation. With a consistent and reliable source of high-quality rubber, you can be confident that your products will meet the demands of your customers.
