SBR insertion rubber sheet with ply 5mm thick industrial reinforced rubber

SBR insertion rubber sheet with ply 5mm thick industrial reinforced rubber

Product ID : fabric reinforced rubber sheet-1.7g/cm3

Product Attributes :

Whatsapp & P.H: 008615222735180

Email: info@chn-rubber.com

1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.7g/cm3
6. Hardness:65±5
7. Tensile strength: 2-2.5Mpa
8. Elongation: 150%
9. with or without fabric reinforcement (cotton /Nylon/Canvas)

Product Description

Technical Parameters

Name	Thickness mm	Width M	Gravity g/cm3	weight kgs/㎡	Reinforcement (Nylon/Cotton)
Fabric reinforced rubber sheet	1	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	1.7	/
	1.5	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	2.55	/
	1.7	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	2.89	1ply
	2	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	3.4	1PLY
	3	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	5.1	1PLY
	4	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	6.8	1PLY
	5	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	8.5	2PLY MAX
	6	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	10.2	3PLY MAX
	8	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	13.6	4PLY MAX
	10	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	17	5PLY MAX
	12	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	20.4	8PLY MAX
	15	1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m	1.7	25.5	10PLY MAX

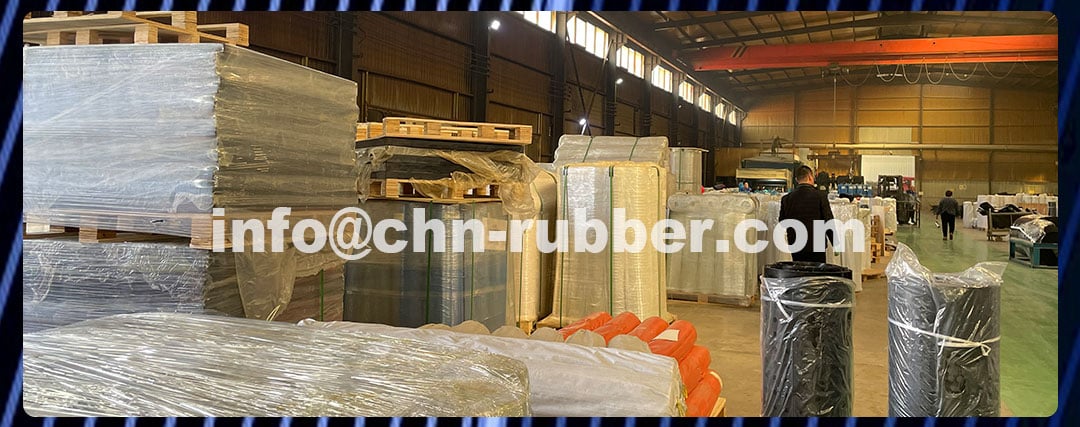

SBR insertion rubber sheet with ply factory image

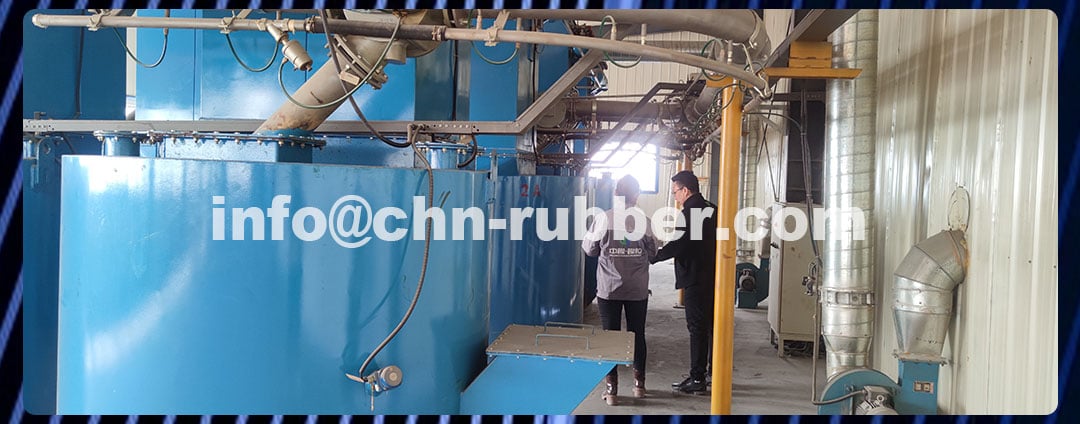

Automated Mixing Machines: Increased Efficiency:

SBR insertion rubber sheet

Description：

SBR insertion rubber sheet with ply is a type of rubber sheeting that is made with a layers of SBR rubber and fabric. This makes it very strong and able to withstand high temperatures and pressures. It is often used in gaskets, seals, and other applications where strength and durability are required.

A rubber sheet with ply is a type of sheet made out of rubber that has multiple layers, or ply, of rubber. This type of sheet is often used in applications where multiple layers of rubber are needed, such as in gaskets or other seals. Rubber sheets with ply are also often used in applications where a high degree of flexibility is needed.
