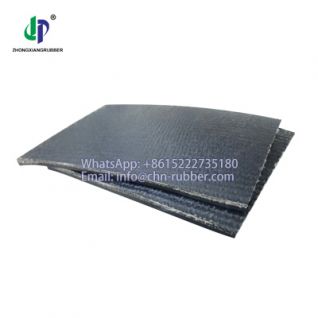

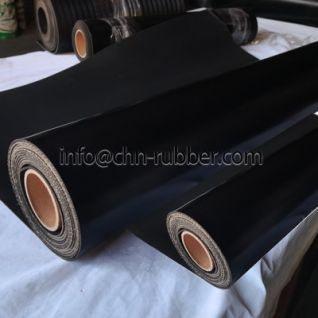

1.9g/cm³ black 1PLY insertion rubber SBR material
Whatsapp: 008615222735180
P.H: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.9g/cm3
6. Hardness:80±5
7. Tensile strength: 1.5Mpa
8. Elongation: 150%
9. with or without fabric reinforcement ( Cotton /Nylon / Canvas / Iron wire )
More than 20 years manufacturer of Fabric reinforced rubber sheet suppliers
| Thickness mm | Gravity G/cm3 | Width M | Weight (KGS/ ㎡） | Reinforcement |
| 1 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 1.9 | / |
| 1.5 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.85 | / |
| 1.7 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 3.23 | 1PLY |
| 2 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 4.8 | 1PLY |
| 3 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 5.7 | 1PLY |
| 4 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 7.6 | 1PLY |
| 5 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 9.5 | 2PLY MAX |
| 6 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 11.4 | 3PLY MAX |
| 8 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 15.2 | 4PLY MAX |
| 10 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 19 | 5PLY MAX |
| 12 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 22.8 | 8PLY MAX |
| 15 | 1.9 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 28.5 | 10PLYMAX |

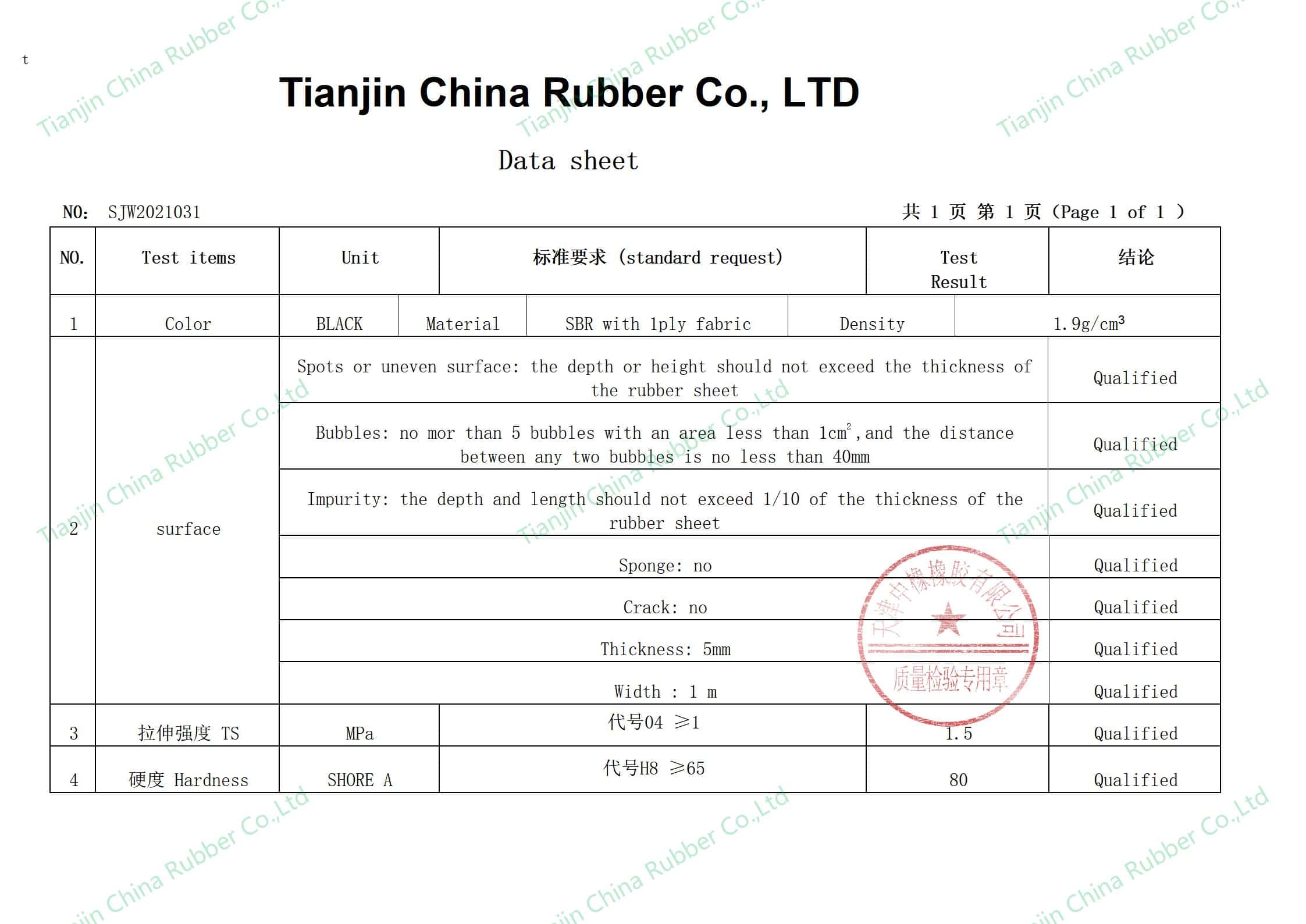

Fabric Reinforced Rubber Sheet DATA SHEET
Fabric reinforced rubber sheet suppliers:
Fabric reinforced rubber sheet suppliers - Description:
We are fabric reinforced rubber sheet suppliers from China. Reinforced rubber sheet is a kind of rubber sheet with cloth or other reinforcement materials added, density 1.9g/cm³,This reinforcement material increases the mechanical strength and stability.

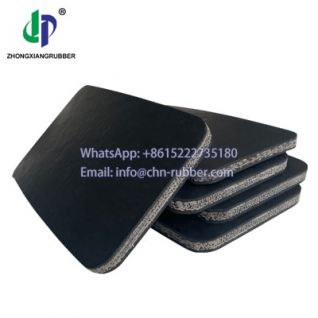

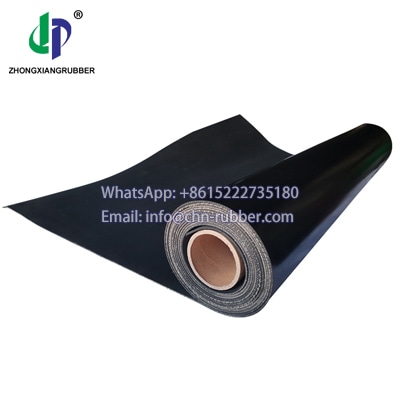

Fabric reinforced rubber sheet is a kind of rubber sheet with cloth or other reinforcement materials added. The surface is smooth, but the back can also be lined with cloth. This reinforcement material increases the mechanical strength and stability of the rubber sheet, making it more durable and extremely tear resistant. The cloth back also makes the rubber sheet more resistant to puncture and wear. The reinforced rubber sheet is usually used in applications requiring high durability and strength, such as in industrial or commercial environments, mining, and transmission belts, which are wear-resistant and have a long service life.
As a fabric reinforced rubber sheet suppliers, most of the cloth clamping rubber sheets we supply will be used in the industrial field. They are very suitable for industries with high wear and strong requirements, and can improve the durability. We can also provide various cutting services through customization, including plates, rolls, and sheets. Pallets can be added as required during transportation, and there is also a complete after-sales service. In the past 20 years, We have rich service experience and can provide you with the best service and the most economical quotation. If you need, please contact us immediately.
A reliable fabric reinforced rubber sheet suppliers is very important to you! In the field of fabric reinforced rubber sheet suppliers, we have many years of experience. We have SGS, REACH, RoHS 2.0, ISO, IEC 61111 certificates. The products go through strict testing procedures to ensure that the product quality is intact and up to standard. We hope to provide customers with satisfactory and qualified products, and we hope that we can reach cooperation.
