Insertion rubber sheet 3mm industrial fiber reinforced rubber rolls
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.7g/cm3
6. Hardness:65±5
7. Tensile strength: 2-2.5Mpa
8. Elongation: 150%
9. with or without fabric reinforcement (cotton /Nylon/Canvas)
Technical Parameters
| Name | Thickness mm | Width M | Gravity g/cm3 | weight kgs/㎡ | Reinforcement (Nylon/Cotton) |
Fabric reinforced rubber sheet |
1 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 1.7 | / |
| 1.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 2.55 | / | |
| 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 2.89 | 1ply | |
| 2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 3.4 | 1PLY | |
| 3 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 5.1 | 1PLY | |
| 4 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 6.8 | 1PLY | |
| 5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 8.5 | 2PLY MAX | |
| 6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 10.2 | 3PLY MAX | |
| 8 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 13.6 | 4PLY MAX | |
| 10 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 17 | 5PLY MAX | |
| 12 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 20.4 | 8PLY MAX | |
| 15 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 25.5 | 10PLY MAX |

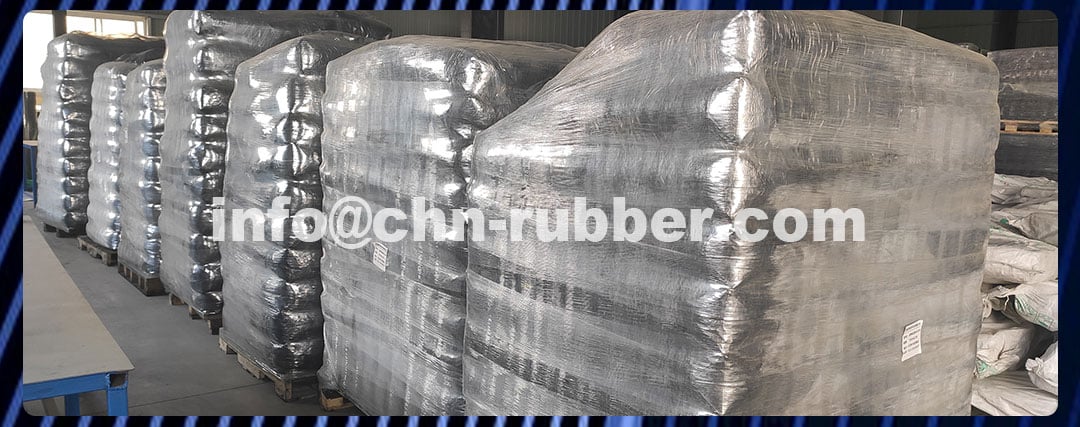

Insertion rubber sheet 3mmfactory image
Description：
Insertion rubber sheet is a thin, rubbery sheet that is inserted between two surfaces in order to create a seal. It is typically used to create a seal around doors and windows, or to prevent leakage in plumbing. insertion rubber sheet is available in a variety of thicknesses, but 3mm is a common thickness.
An insertion rubber sheet is a type of rubber sheeting that is inserted between two layers of fabric. This type of rubber sheeting is typically used in industrial applications, such as in the automotive industry. Insertion rubber sheeting is also used in the manufacturing of gaskets and other types of seals.
