PRODUCT

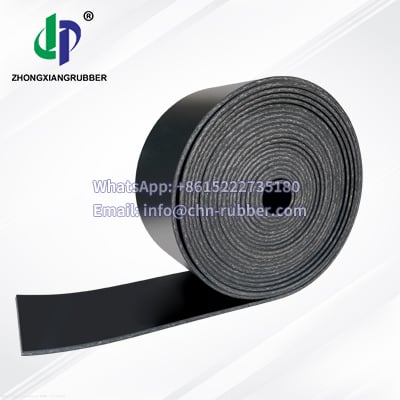

3mm insertion rubber roll with ply 1.7g/cm³ industrial reinforced neoprene rubber
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.

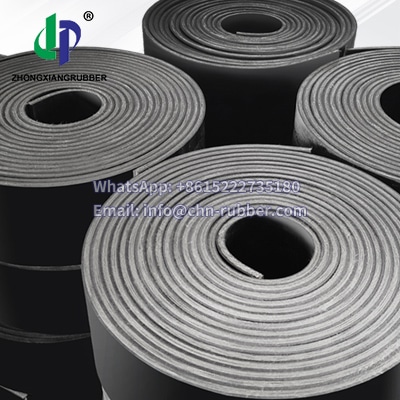

Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180

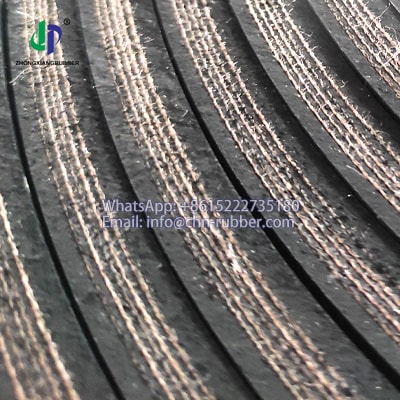

Tianjin China Rubber Co., Ltd. produces 3mm insertion rubber sheets that are ASTM tested and SGS/RoHS2.0/REACH certified, with precision engineered fabric reinforcements for structural stability in high shear applications. With one or more layers of nylon cloth reinforcement, these sheets are able to maintain good stability without delamination in some harsh conditions, making them ideal for diaphragm seals and hydraulic press liners.
We can produce environment-specific insertion rubber sheets using different polymers, such as reinforced neoprene rubber sheet, NBR insertion rubber, SBR insertion rubber and etc. for wear, oil, chemical, corrosion and other application environments, which can give full play to the best performance. For corrosive environments, our reinforced neoprene rubber sheet uses a CR/SBR blended compound with a Shore hardness of 75 and 3 layers of polyester fiber reinforcement (this can be added or subtracted as required).
INSERTION RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| INSERTION RUBBER SHEET TECHNICAL PARAMETERS | ||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Materials | Application | Finish Type |
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | --- | --- |
| ZXZRS20109F | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Black | SBR | General Purpose | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture |
| ZXZRS20109F | 1.4+/-0.05 | 60 | 5 | 280 | Black | CR | Small amount of chemical solvent | |
| ZXZRS20109F | 1.4+/-0.05 | 60 | 5 | 280 | Black | EPDM | Anti-aging/Chemical solvent resistance | |
| ZXZRS20109F | 1.5+/-0.05 | 60 | 5 | 280 | Black | NBR | Small amount of oil | |
| ZXZRS20109F | 1.3+/-0.05 | 55 | 8 | 300 | Black | NR | High wear resistance | |
| SPECIFICATION | ||||||||
| Thickness | Width | Length | Insertion | Weight KGS/m² | ||||
| mm | m | m | Material | Layers | 1.3+/-0.05 | 1.4+/-0.05 | 1.5+/-0.05 | 1.7+/-0.05 |
| 2 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | 1PLY | 28.08 | 30.24 | 32.4 | 36.72 |
| 3 | Standard width | 5m/10m/15m/20m | 1PLY | 43.68 | 47.04 | 50.4 | 57.12 | |
| 4 | Standard width | 5m/10m/15m/20m | 1PLY | 59.28 | 63.84 | 68.4 | 77.52 | |
| 5 | Standard width | 5m/10m/15m/20m | 2PLY | 74.88 | 80.64 | 86.4 | 97.92 | |
| 6 | Standard width | 5m/10m/15m/20m | 3PLY | 90.48 | 97.44 | 104.4 | 118.32 | |
| 8 | Standard width | 5m/10m/15m/20m | 4PLY | 121.68 | 131.04 | 140.4 | 159.12 | |
| 10 | Standard width | 5m/10m/15m/20m | 5PLY | 152.88 | 164.64 | 176.4 | 199.92 | |
| 12 | Standard width | 5m/10m/15m/20m | 8PLY | 184.08 | 198.24 | 212.4 | 240.72 | |
| 15 | Standard width | 5m/10m/15m/20m | 10PLY | 230.88 | 248.64 | 266.4 | 301.92 | |
| 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 52 | 56 | 60 | 68 | |
| 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 65 | 70 | 75 | 85 | |
| 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 78 | 84 | 90 | 102 | |
| 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 130 | 140 | 150 | 170 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.

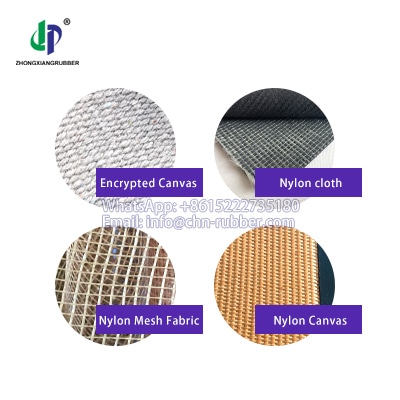

Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |

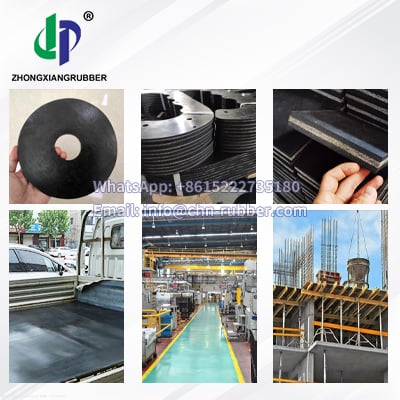

TARGET APPLICATIONS
- 1. Automotive stamping dies: 3mm insertion rubber as a shock absorbing gasket for presses.
- 2. Material handling at ports: Laminated reinforced rollers for ship loader belt systems.
- 3. Chemical tank linings: Neoprene for acid tanks.
