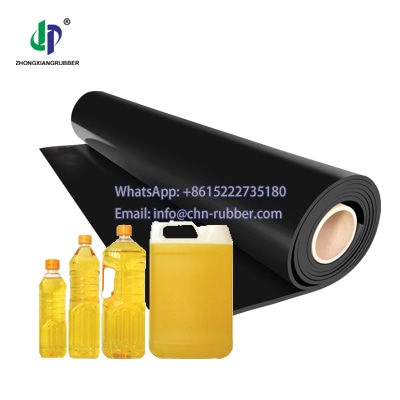

Oil resistant rubber sheet 1.5g/cm³ higher quality
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: 100% recycled rubber
2.Grade : Low Quality Oil Resistant
3. Thickness:1mm-100mm
4. Width: 3m max
5. Length: 10m/roll 20m/roll or as your request
6. Gravity: 1.5g/cm3
7. Hardness:65±5
8. Tensile strength: 5Mpa
9. Elongation: 300%
10. with or without fabric reinforcement

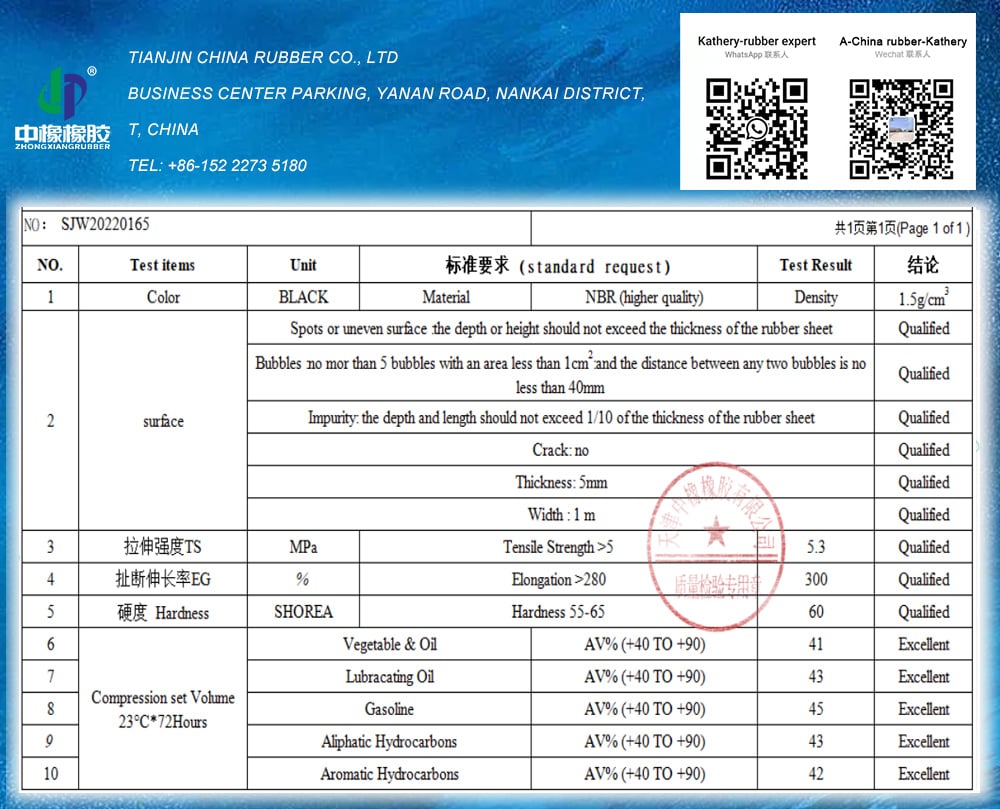

Oil resistant rubber sheet data sheet：
| Thickness mm | Width m | Gravity g/cm³ | Weight KG/㎡ | Reinforcement | Chemical Specifications (Sink in 23℃*72hours liquid) | |
| 1 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 1.5 | / | Aliphatic Hydrocarbons | EXCELLENT |
| 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 2.25 | / | Aromatic Hydrocarbons | EXCELLENT |
| 1.7 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 2.55 | 1PLY | Lubricating Oils | EXCELLENT |
| 2 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 3 | 1PLY | Petrol Gasoline | EXCELLENT |
| 3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 4.5 | 1PLY | Diesel Fuel | EXCELLENT |
| 4 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 6 | 1PLY | Outdoor Exposure | EXCELLENT |
| 5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 7.5 | 2PLY | Ozone Exposure | EXCELLENT |
| 6 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 93 | 3PLY | Diluted Acids | Regular |
| 8 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 12 | 4PLY | Diluted Alkali | Regular |
| 10 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 15 | 5PLY | Vegitable Oil | EXCELLENT |
| 12 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 18 | 8PLY | Animal Oil | EXCELLENT |
| 15 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 22.5 | 10PLY | ||
Oil resistant rubber sheet description：
Oil resistant rubber sheeting is a type of rubber that is resistant to oils and other hydrocarbon-based fluids. It is often used in applications where oil or other fluids may come into contact with the rubber, such as in seals, gaskets, or coatings. Oil resistant rubber can be made from a variety of polymers, including natural rubber, nitrile rubber, neoprene, and chloroprene.
Oil resistant rubber sheet has a wide range of applications in many different industries. They are commonly used in gaskets, seals and o-rings because of their ability to withstand exposure to oil and other chemicals. They are also used in industrial construction applications. NBR rubber sheets, also called nitrile rubber sheets, are made from a synthetic rubber compound that includes nitrile. These sheets offer good resistance to oils and other chemicals, making them ideal for applications such as gaskets, seals, and o-rings. NBR rubber sheets are available in a variety of thicknesses and sizes to suit your needs.
