PRODUCT
Nitrile rubber oil resistance NBR sheet 1.5g/cm³ middle quality
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber
2.Grade : little / Low / Middle / Top Quality Oil Resistant
3. Thickness:1mm-100mm
4. Width: 3m max
5. Length: 10m/roll 20m/roll or as your request
6. Gravity: 1.5g/cm3
7. Hardness:65±5
8. Tensile strength: 5Mpa
9. Elongation: 300%
10. with or without fabric reinforcement
Technical Parameters
| Thickness mm | Width m | Gravity g/cm³ | Weight KG/㎡ | Reinforcement | Chemical Specifications (Sink in 23℃*72hours liquid) | |
| 1 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 1.5 | / | Aliphatic Hydrocarbons | EXCELLENT |
| 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 2.25 | / | Aromatic Hydrocarbons | EXCELLENT |
| 1.7 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 2.55 | 1PLY | Lubricating Oils | EXCELLENT |
| 2 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 3 | 1PLY | Petrol Gasoline | EXCELLENT |
| 3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 4.5 | 1PLY | Diesel Fuel | EXCELLENT |
| 4 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 6 | 1PLY | Outdoor Exposure | EXCELLENT |
| 5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 7.5 | 2PLY | Ozone Exposure | EXCELLENT |
| 6 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 9 | 3PLY | Diluted Acids | Regular |
| 8 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 12 | 4PLY | Diluted Alkali | Regular |
| 10 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 15 | 5PLY | Vegitable Oil |
EXCELLENT |
| 12 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 18 | 8PLY | Animal Oil | EXCELLENT |
| 15 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 1.5 | 22.5 | 10PLY | ||

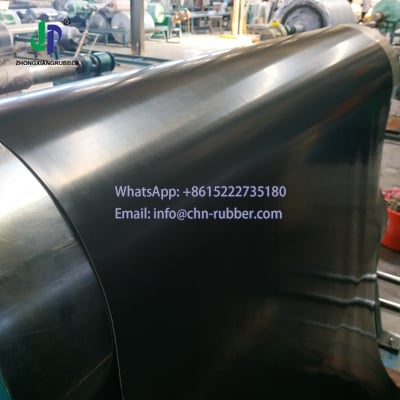

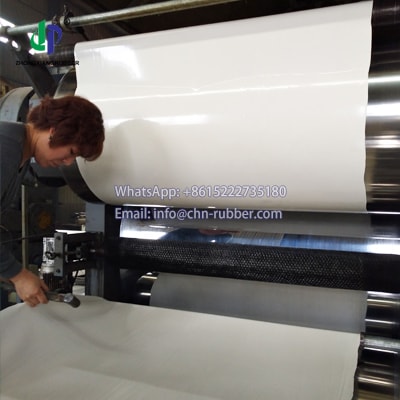

Nitrile rubber oil resistance factory image
Nitrile rubber oil resistance description：
Nitrile rubber oil resistance is a synthetic rubber copolymer of acrylonitrile and butadiene. It has good physical and abrasion resistance and is therefore often used in o-rings, gaskets, hoses, mechanical seals, and other products where good resistance to swelling, compression set, and abrasion is required. It is also used in fuel hoses, fuel tanks, and other products where resistance to petroleum-based fluids is required.
Our nitrile rubber sheet has many products in stock and can be shipped at any time. We have a wide variety of nitrile rubber sheet products that are available in different sizes, thicknesses, and colors.No matter what your nitrile rubber sheet needs are, we can help you find the right product at the right price.
