PRODUCT
insertion rubber sheet 1.5g/cm3 3-4Mpa 200% elongation
Whatsapp: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.5g/cm3
6. Hardness:60±5
7. Tensile strength: 3-4Mpa
8. Elongation: 200%
9. with or without fabric reinforcement (cotton /Nylon/Canvas)
insertion rubber sheet (cotton /Nylon/Canvas)
| Name | Thickness mm | Width M | Gravity g/cm3 | weight kgs/㎡ | Reinforcement (Nylon/Cotton) |
insertion rubber sheet |
1 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 1.7 | / |
| 1.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 2.55 | / | |
| 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 2.89 | 1ply | |
| 2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 3.4 | 1PLY | |
| 3 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 5.1 | 1PLY | |
| 4 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 6.8 | 1PLY | |
| 5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 8.5 | 2PLY MAX | |
| 6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 10.2 | 3PLY MAX | |
| 8 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 13.6 | 4PLY MAX | |
| 10 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 17 | 5PLY MAX | |
| 12 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 20.4 | 8PLY MAX | |
| 15 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1.7 | 25.5 | 10PLY MAX |
Insertion rubber sheet
|
Cloth insertion rubber sheet has been reinforced with 1ply or multy-layers of cloth or duck such as polyester, nylon, cotton or fiberglass fabric. This reinforcement enhance to add stability in cloth insertion rubber sheet applications requiring mechanical fastenging and reduces creep when there are high compression loads. insertion rubber sheet Insertion cloth neoprene rubber sheet is suitable in applications requiring minimal oil resistance and where hot and/or cold water and gases are being transfered. Such applications might include meters, control devices, regulators, pumps and diaphragms for insertion rubber sheet insertion rubber sheet ( Cotton/Nylon/Canvas) is suitable for use in hydraulics and where air, water or low pressure steam will be passed. insertion rubber sheet With its good mechanical properties SBR rubber insertion sheeting is one of the most popular sheeting used in industrial applications. The high abrasion resistance and the resistance to ageing makes it a quality for long working life. SBR possesses properties similar to those of natural rubber. |

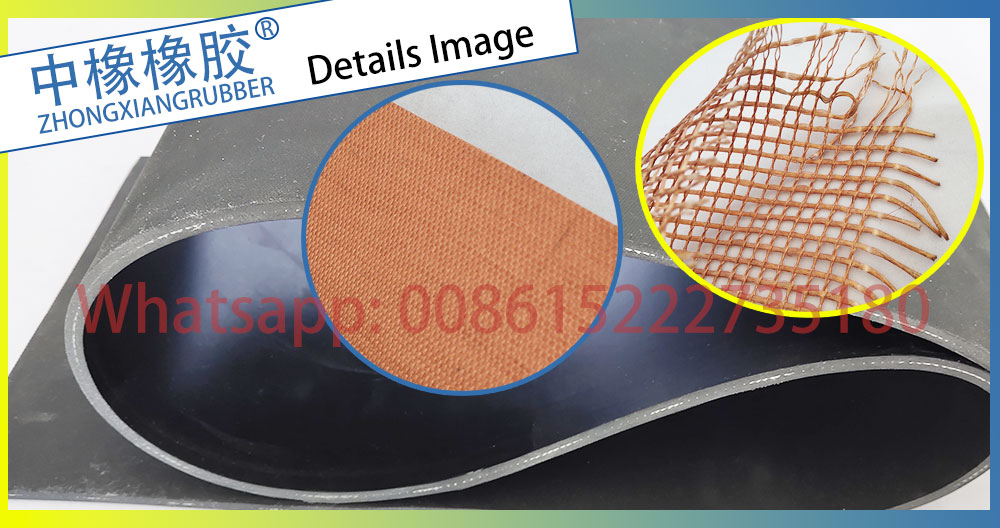

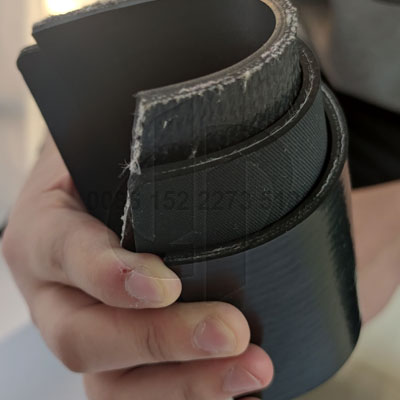

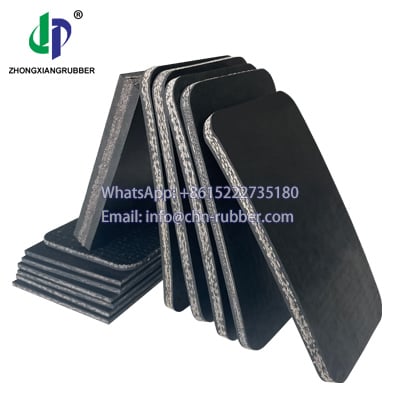

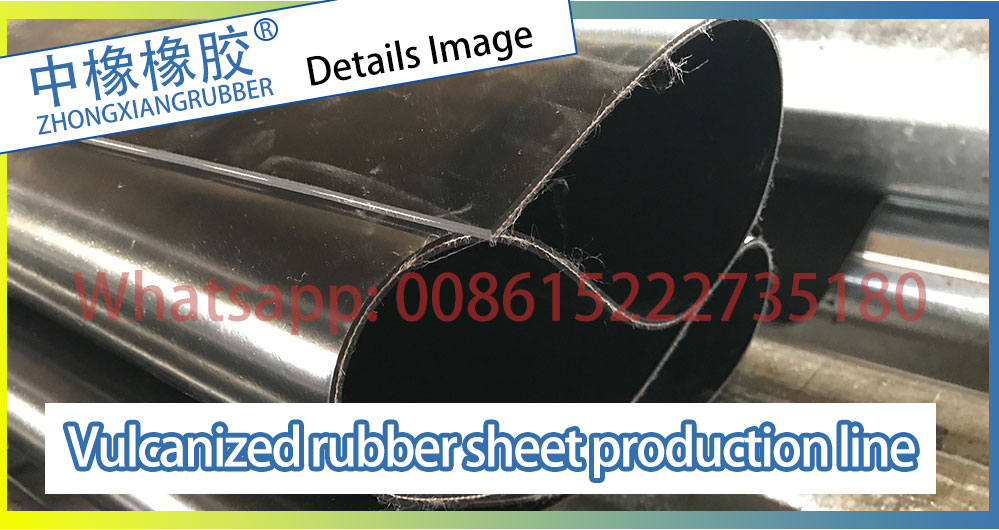

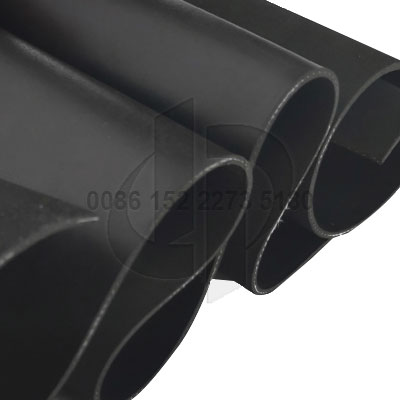

Insertion Rubber Sheet Pics
