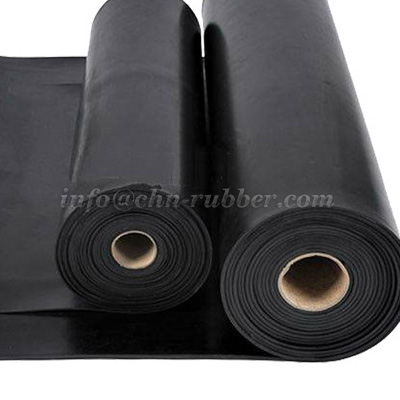

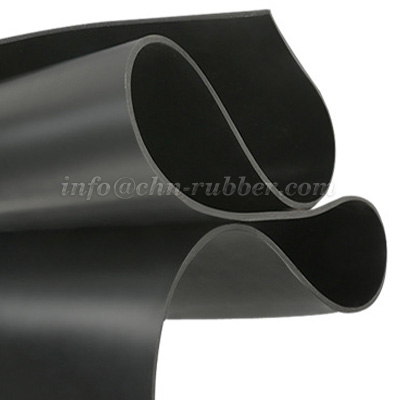

3MM EPDM gasket roll black rubber sheet 1.7g/cm³
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.7g/cm3
6. Hardness:65~75
7. Tensile strength: 2Mpa
8. Elongation: 150%
9. with or without fabric reinforcement
About EPDM gasket roll:
EPDM rubber gasket roll refers to a roll-shaped gasket made of EPDM rubber (EPDM rubber) material. Ethylene propylene diene monomer (EPDM) is a versatile synthetic rubber with excellent resistance to weathering, ozone, ultraviolet radiation and a wide range of chemicals. Due to its exceptional durability and resilience, it is widely used in various industries, including automotive, construction and manufacturing. The gasket roll format provides convenience and flexibility for creating custom gaskets in a variety of sizes and shapes.
EPDM gasket roll size:
| Thickness mm | Gravity g/cm3 | Weight KGS/㎡ | Reinforcement | Width meters |
| 1 | 1.7 | 1.7 | / | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 1.5 | 1.7 | 2.55 | / | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 2 | 1.7 | 3.4 | 1PLY | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 3 | 1.7 | 5.1 | 1PLY | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 4 | 1.7 | 6.8 | 1PLY | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 5 | 1.7 | 8.5 | 2PLY MAX | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 6 | 1.7 | 10.2 | 3PLY MAX | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 8 | 1.7 | 13.6 | 4PLY MAX | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 10 | 1.7 | 17 | 5PLY MAX | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 12 | 1.7 | 20.4 | 8PLY MAX | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
| 15 | 1.7 | 25.5 | 10PLY MAX | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m |
It is particularly useful for applications that require sealing against moisture, air, dust or providing insulation and noise reduction properties. EPDM gasket roll can be easily cut to the required length for easy installation and replacement. EPDM gasket roll is widely used in various industries. In automobile manufacturing, for example, they are often used to seal doors, windows and trunks to prevent water or air leaks. In the construction industry, EPDM rubber gasket rolls are used to weatherproof doors, windows and roofs, ensuring excellent thermal insulation properties.
In addition, EPDM gasket roll is also used in the electrical and HVAC (heating, ventilation and air conditioning) industries due to their excellent electrical insulation and temperature resistance properties. Overall, EPDM gasket rolls are popular for their reliability, longevity, and cost-effectiveness. Their ease of installation and customization options make them the first choice for sealing and insulation applications in a variety of industries.
