Hardness (Shore A) : 50-80
Strength Tensile (Mpa) :3-20
Density (g/cm3) :1.3-1.7
Elongation (%) :200
Thickness : 10mm
Length : 1-50m
Width : 2m
Color : Black
Surface Finish : Smooth finish
Thickness / mm | Gravity G/cm³ | Weight KGS/㎡ | Width / m | Reinforcement | Chemical Specifications | |
1 | 1.7 | 1.7 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | / | Aliphatic Hydrocarbons | POOR |
1.5 | 1.7 | 2.55 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | / | Aromatic Hydrocarbons | POOR |
1.7 | 1.7 | 2.89 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Lubricating Oils | POOR |
2 | 1.7 | 3.4 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Outdoor Exposure | REGULAR |
3 | 1.7 | 5.1 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Ozone Exposure | POOR |
4 | 1.7 | 6.8 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 1PLY | Diluted Acids | REGULAR |
5 | 1.7 | 8.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 2PLY | Diluted Acids | REGULAR |
6 | 1.7 | 10.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 3PLY | Vegitable Oil | POOR |
8 | 1.7 | 13.6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 4PLY | Animal Oil | POOR |
10 | 1.7 | 17 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 5PLY | -- | |
12 | 1.7 | 20.4 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 8PLY | -- | |
15 | 1.7 | 25.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2m | 10PLY | -- |
Neoprene black sheet rubber are moderately resistant to grease environments, not as good as nbr rubber sheets. But it is the most commonly used rubber sheet in synthetic rubber, with an excellent balance of physicochemical properties. It has better wear resistance, especially the 10mm rubber sheet, which is not only waterproof, but also shock absorbing. The biggest feature of neoprene is acid and alkali resistance, which also shows that it can be used in strong corrosive environments. The air permeability of 10mm rubber sheet is very low, but it has excellent flame retardancy, but this flame retardancy property is not innate, but is formed by adding special flame retardants during the production process, chlorine Butadiene rubber is one of the rubbers that can self-extinguish, the price of 10mm rubber sheet is a little higher, but it is still worth it.

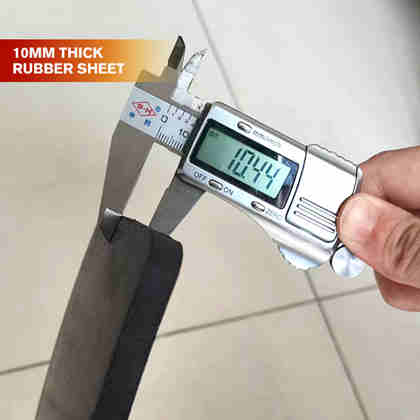

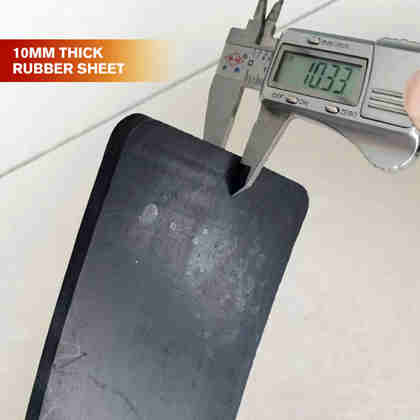

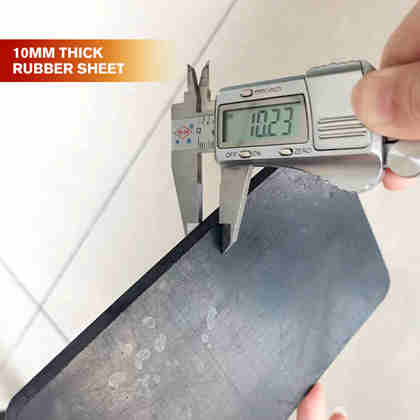

10mm rubber sheet features:
Pure solid rubber, not foam Both sides can be smooth and flat, no burrs Can be reinforced and improved wear and stability by adding fabrics Special sizes can be provided, 1-100mm is our regular specification, special specifications of rubber sheets or rubber parts need to provide drawings in advance. Sheet packaging, the innermost is a film, the outer is a woven bag, a tray, these will vary according to actual needs, not the only one. The 10mm thick rubber sheet can be cut into any shape, rolls, sheets, small pieces, etc. Neoprene sheets can also be used outdoors, accepting a certain range of strong light, UV rays and ozone. And the 10mm rubber sheet price is a little higher. |
