PRODUCT

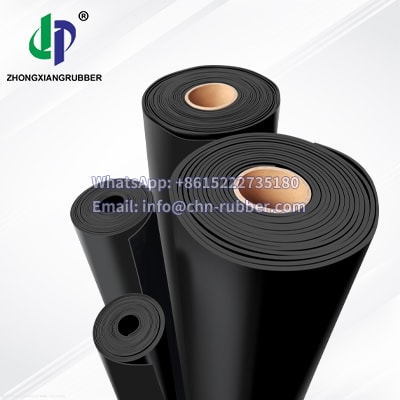

Neoprene rubber gasket sheet 3mm CR rubber sheeting rolls
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice

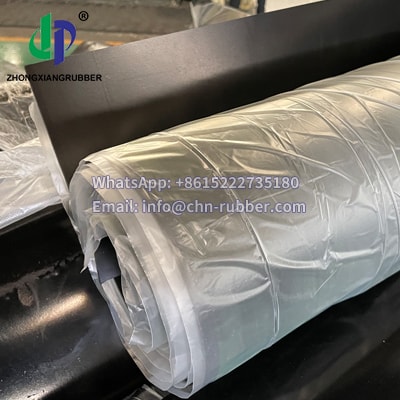

Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P.H & Wechat: 008615222735180
Designed for precision sealing in harsh environments, Neoprene gaskets combine Neoprene’s inherent acid, alkali, weather and ozone resistance with advanced compounding technology. These gasket materials are ASTM and SGS/REACH/RoHS2.0 certified, provide reliable performance, and are ideal for dynamic sealing applications that require durability and chemical stability.
KEY FEATURES
- Oil and fuel resistant – withstands ASTM oil numbers, which is critical for automotive gaskets and fuel system seals.
- Low temperature flexibility
- Flame retardant – UL 94 HB/V-0 options available, self-extinguishing <3s afterflame.
- Compression set resistance – ensures long-term flange seal integrity.
- Customizable adhesion – pre-coated PSA (pressure sensitive adhesive) layer for quick installation.
NEOPRENE RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| CR RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Finish Type | |
| g/cm³ | Shore A | Mpa | (min） % | ||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | |
| ZXZRS20001C | 1.3+/-0.05 | 55 | 8 | 400 | Black/Red/Green, customized production according to demand | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture | |
| ZXZRS20001C | 1.35+/-0.05 | 55 | 6-7 | 350 | |||
| ZXZRS20001C | 1.4+/-0.05 | 60 | 5-6 | 320 | |||
| ZXZRS20001C | 1.45+/-0.05 | 60 | 4-5 | 260 | |||
| ZXZRS20001C | 1.5+/-0.05 | 65 | 3-4 | 200 | |||
| ZXZRS20001C | 1.6+/-0.05 | 70 | 2.5-3 | 180 | |||
| ZXZRS20001C | 1.7+/-0.05 | 75 | 2-2.5 | 160 | |||
| ZXZRS20001C | 1.8+/-0.05 | 75 | 1.5 | ≥140 | |||
| ZXZRS20001C | 1.9+/-0.05 | 80 | 1-1.5 | 100 | |||
| ZXZRS20001PC-30% | 1.4+/-0.05 | 60 | 5 | 280 | |||
| ZXZRS20001PC-50% | 1.4+/-0.05 | 60 | 7-8 | 320 | |||
| ZXZRS20001PC-70% | 1.3 | 60 | 9-10 | 380 | |||
| ZXZRS20001PC-100% | 1.3 | 60 | 10-12 | 420 | |||
Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm
| SPECIFICATION |
||||||||||||
| Thickness | Dimension | Insertion | Weight KGS/m² | |||||||||
| mm | m | Material | Layers | 1.3+/-0.05 | 1.35+/-0.05 | 1.4+/-0.05 | 1.45+/-0.05 | 1.5+/-0.05 | 1.6+/-0.05 | 1.7+/-0.05 | 1.8+/-0.05 | 1.9+/-0.05 |
| 1 | 1.2 x10 | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 12.48 | 12.96 | 13.44 | 13.92 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 |
| 1.5 | 1.2 x10 | / | 20.28 | 21.06 | 21.84 | 22.62 | 23.40 | 24.96 | 26.52 | 28.08 | 29.64 | |
| 2 | 1.2 x10 | 1PLY | 28.08 | 29.16 | 30.24 | 31.32 | 32.40 | 34.56 | 36.72 | 38.88 | 41.04 | |
| 3 | 1.2 x10 | 1PLY | 43.68 | 45.36 | 47.04 | 48.72 | 50.40 | 53.76 | 57.12 | 60.48 | 63.84 | |
| 4 | 1.2 x10 | 1PLY | 59.28 | 61.56 | 63.84 | 66.12 | 68.40 | 72.96 | 77.52 | 82.08 | 86.64 | |
| 5 | 1.2 x10 | 2PLY | 74.88 | 77.76 | 80.64 | 83.52 | 86.40 | 92.16 | 97.92 | 103.68 | 109.44 | |
| 6 | 1.2 x10 | 3PLY | 90.48 | 93.96 | 97.44 | 100.92 | 104.40 | 111.36 | 118.32 | 125.28 | 132.24 | |
| 8 | 1.2 x10 | 4PLY | 121.68 | 126.36 | 131.04 | 135.72 | 140.40 | 149.76 | 159.12 | 168.48 | 177.84 | |
| 10 | 1.2 x10 | 5PLY | 152.88 | 158.76 | 164.64 | 170.52 | 176.40 | 188.16 | 199.92 | 211.68 | 223.44 | |
| 12 | 1.2 x10 | 8PLY | 184.08 | 191.16 | 198.24 | 205.32 | 212.40 | 226.56 | 240.72 | 254.88 | 269.04 | |
| 15 | 1.2 x10 | 10PLY | 230.88 | 239.76 | 248.64 | 257.52 | 266.40 | 284.16 | 301.92 | 319.68 | 337.44 | |
| 20 | 1x2 | ≥10PLY | 52 | 54 | 56 | 58 | 60.00 | 64 | 68 | 72 | 76 | |
| 25 | 1x2 | ≥10PLY | 65 | 67.5 | 70 | 72.5 | 75.00 | 80 | 85 | 90 | 95 | |
| 30 | 1x2 | ≥10PLY | 78 | 81 | 84 | 87 | 90.00 | 96 | 102 | 108 | 114 | |
| 50 | 1x2 | ≥10PLY | 130 | 135 | 140 | 145 | 150.00 | 160 | 170 | 180 | 190 | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
TARGET APPLICATION
- 1. Automotive: Oil and glycol resistant valve cover gaskets.
- 2. Marine equipment: Saltwater resistant hatch seals.
- 3. HVAC Systems: Closed Cell Neoprene Sheets for Duct Gaskets
- 4. Industrial Machinery: Conveyor Belt Joints
Available in sheets (1m×2m) and rolls (1.2m×10m) in black, white or custom colors. With full material certification.
