1.2g/cm³ SBR Material fabric insertion IPLY rubber sheet
Whatsapp: 008615222735180
P.H: 008615222735180
Email: info@chn-rubber.com
Wechat: 008615222735180
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.2g/cm3
6. Hardness:50Shore A
7. Tensile strength: 10Mpa
8. Elongation: 450%
9. with or without fabric reinforcement ( Cotton /Nylon / Canvas / Iron wire )

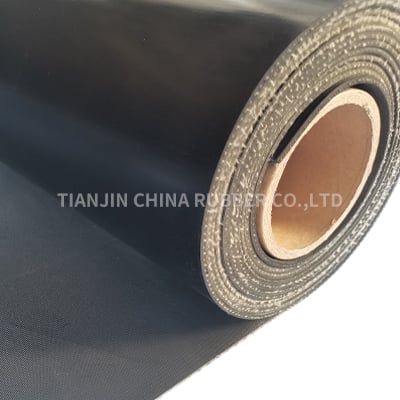

Insertion rubber supplier / fabric reinforced rubber sheet
| Thickness mm | Gravity G/cm3 | Width M | Weight (KGS/ ㎡） | Reinforcement |
| 1 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 1.2 | / |
| 1.5 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 1.8 | / |
| 1.7 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.04 | 1PLY |
| 2 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.4 | 1PLY |
| 3 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 3.6 | 1PLY |
| 4 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 4.8 | 1PLY |
| 5 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 6.0 | 2PLY MAX |
| 6 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 7.2 | 3PLY MAX |
| 8 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 9.6 | 4PLY MAX |
| 10 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 12 | 5PLY MAX |
| 12 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 14.4 | 8PLY MAX |
| 15 | 1.2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 18 | 10PLYMAX |

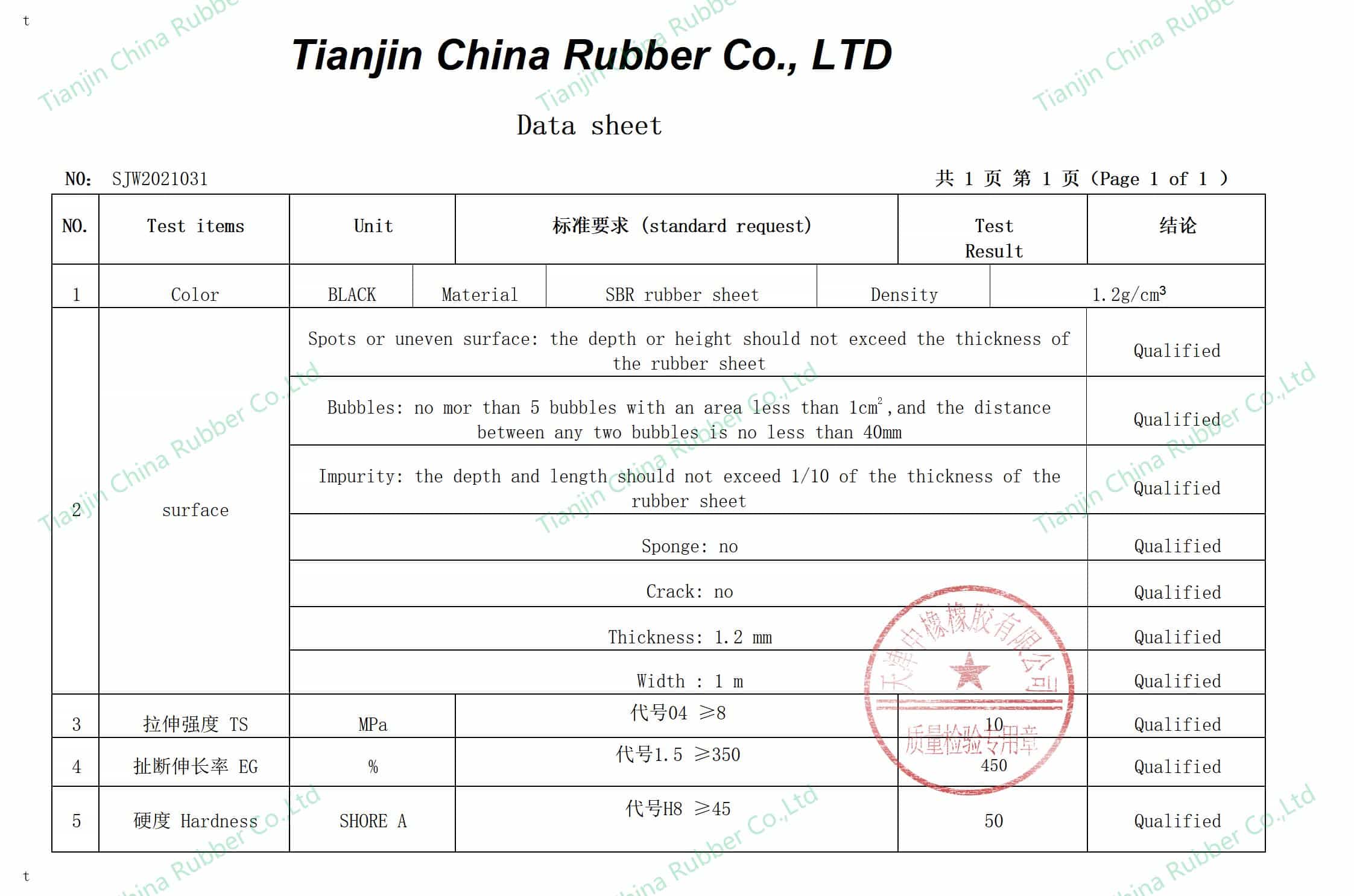

DATA SHEET
If you find Insertion rubber supplier:
Our fabric reinforced rubber sheets are a high-quality and economical solution for many applications. We use a combination of high-quality recycled tires and disperse fibers to make this material. This creates a unique compound with excellent durability and resistance. We can provide this material with standard thickness from 1mm to 100mm. We can also produce this material in various forms, such as rolls, slit coils and custom gaskets.
A key feature of insertion reinforced rubber sheets is their excellent tear and wear resistance. Rubber usually has good strength and flexibility. However, fabric reinforcement helps to improve the durability of this material in applications with higher physical requirements. It also has good resistance to low temperature and ozone. This makes our materials perform equally well in indoor and outdoor environments.
If you have any customization requirements, we as the insertion rubber supplier, please feel free to contact us. Our professional team is on call to ensure that you always get the perfect materials and formats for your particular application.As a reliable insertion rubber supplier, we have SGS, Rohs 2.0, IEC 61111, REACH certificates. Before leaving the factory, all products will undergo strict product testing, including thickness, hardness, specific gravity, special rubber plates will test tension, flame retardancy, etc. As a Insertion rubber supplier, we have more than 20 years of experience in serving customers. Through customized services, customers will be more satisfied and find suitable products in the project at a lower price.
If you need insertion rubber supplier,please contact us.
