Fluoroelastomer sheet viton rubber roll 2.1g/cm³ higher quality
Whatsapp & P.H: 008615222735180
Email: info@chn-rubber.com
1. Material: Viton rubber Sheet
2. Thickness:1mm-100mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 2.1g/cm3
6. Hardness:70±5
7. Tensile strength: 6-8Mpa
8. Elongation: 500%
9. Heat temperature resistant ( long time: 230℃）
10. Heat temperature resistant (short time: 250℃）
11. Instantaneous temperature （270℃）
12. Low Temperature Resistant :- 30 ℃
Technical Parameters
| Thickness mm | Width m | Gravity g/cm³ | Weight KG/㎡ | Chemical Specifications | Application | |
| 1 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 2.1 | Vegetable Oil Resistant | Excellent | Oil & Gas projects |
| 1.5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 3.15 | Animal Oil Resistant | Excellent | Gasket & Sealing |
| 2 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 4.2 | Petrol | Excellent | Heat temperature working Area |
| 3 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 6.3 | Acid & Alkali Resistant | Excellent | Heater Treaments |
| 4 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 8.4 | Heat Temperature Resistant | Excellent | Acid & Alkali Resistant Application |
| 5 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 10.5 | Low Temperature Resistant | Low | Petroleum Refining and Transportation |
| 6 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 12.6 | Lubricating oil | Excellent | Protecting pads |
| 8 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 16.6 | Fuel oil | Excellent | Gas and nuclear power plants |
| 10 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 21 | Aliphatic Treament | Excellent | Aliphatic & Aromatic hydrocarbons treament |
| 12 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 25.2 | Aromatic hydrocarbons treament | Excellent | Chemical Processing and Shipping |
| 15 | 1M/1.2M/1.4M/1.5M/1.6M/1.8M/2M | 2.1 | 31.5 | Automobile manufacturing industry | ||

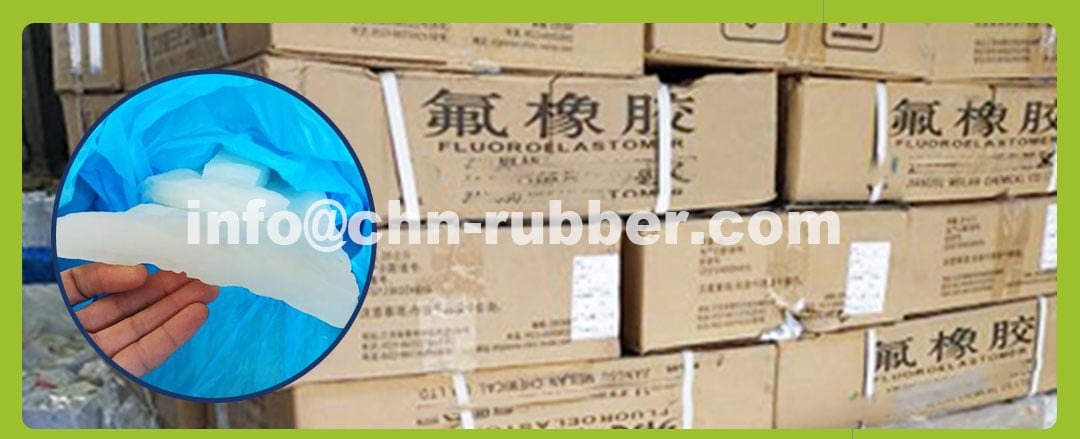

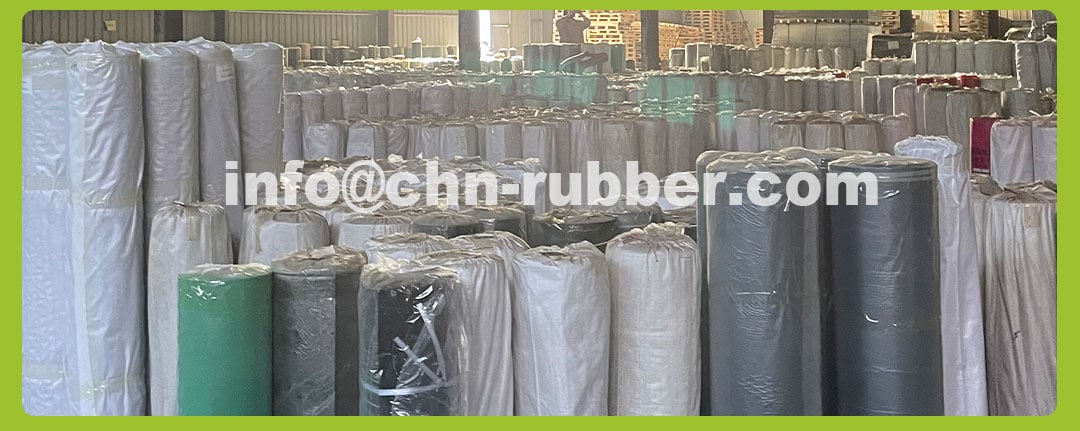

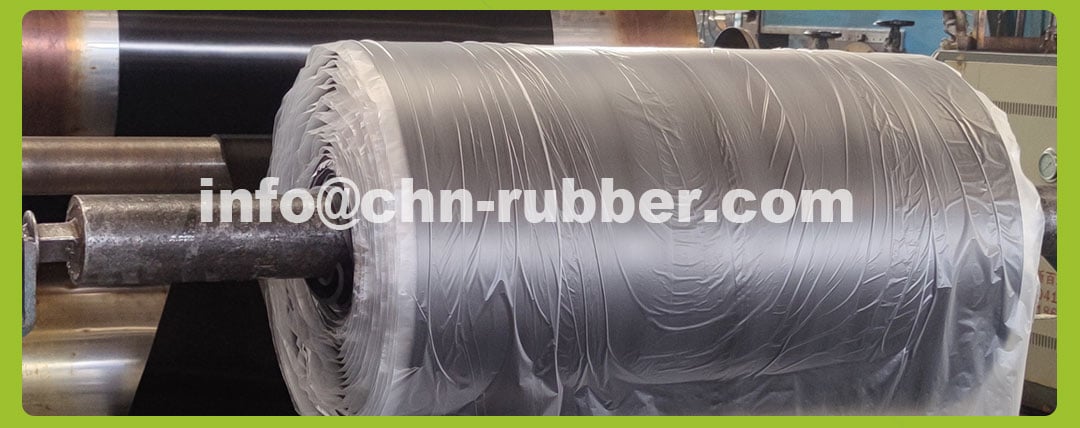

Fluoroelastomer sheetfactory image
Description：
Fluoroelastomer sheet is a type of elastomeric material that has been treated with fluorine-based chemicals in order to provide enhanced resistance to heat and chemicals. This makes fluoroelastomer an ideal choice for use in high-temperature and/or aggressive chemical environments. Fluoroelastomer sheet is available in a variety of thicknesses and can be custom-cut to meet your specific needs.
Fluoroelastomer sheet is a synthetic rubber sheet that is made from a copolymer of vinylidene fluoride and hexafluoropropylene. It has many desirable properties, especially its resistance to heat, chemicals, and oil. Fluoroelastomer sheets are used in a variety of applications, including gaskets, seals, and electrical insulation.
