PRODUCT

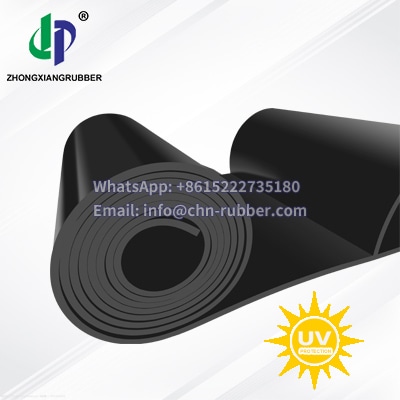

EPDM Commercial grade 1.5g/cm³ S.G rubber sheet
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
WhatsApp & P .H & Wechat: 008615222735180

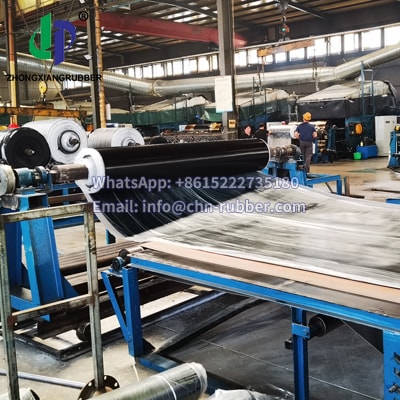

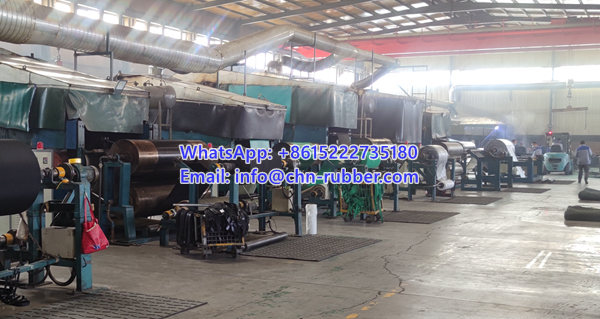

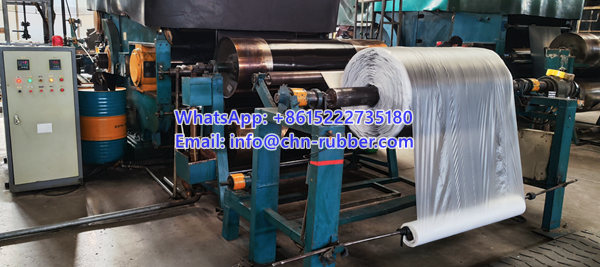

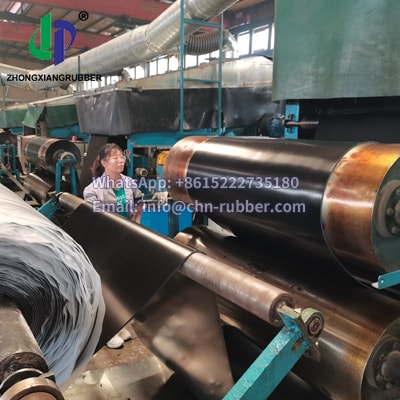

As a professional EPDM rubber sheet factory, we design premium ethylene propylene diene monomer (EPDM) sheets for global industrial applications, combining weather resistance, chemical stability and mechanical durability. Our sheets are formulated with 60-70 Shore A hardness and certified to ASTM D2240 standards, ensuring consistent performance across the operational range. With vertically integrated production from virgin polymer formulation to precision calendering, we offer sheets with a thickness tolerance of ±0.1mm and multi-layer fabric reinforcements for critical sealing, insulation and waterproofing applications.
KEY FEATURES
- Weather/ozone resistant
- Water/chemical inert
- Customizable reinforcement
EPDM RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| EPDM COMMERICAL RUBBER SHEET TECHNICAL PARAMETERS |
||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type |
||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- |
||
| ZXZRS20101CO | 1.5+/-0.05 | 65 | 3 | 200 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture |
||
| ZXZRS20201CO | 1.5+/-0.05 | 65 | 3 | 200 | Red | |||
| ZXZRS20301CO | 1.5+/-0.05 | 65 | 3 | 200 | White | |||
| ZXZRS20401CO | 1.5+/-0.05 | 65 | 3 | 200 | Green | |||
| ZXZRS20501CO | 1.5+/-0.05 | 65 | 3 | 200 | Blue | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | ||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight |
|||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 14.40 | 2.95 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 23.40 | 4.80 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 27.00 | 5.53 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 32.40 | 6.64 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 50.40 | 10.32 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 68.40 | 14.01 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 86.40 | 17.70 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 104.40 | 21.38 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 140.40 | 28.75 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 176.40 | 36.13 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 212.40 | 43.50 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 266.40 | 54.56 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 60.00 | 12.29 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 75.00 | 15.36 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 90.00 | 18.43 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 150.00 | 30.72 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
TARGET APPLICATIONS
- 1. Construction: Bridge expansion joints.
- 2. Automotive: Weather stripping, HVAC seals.
- 3. Utilities: Water treatment plant gasket sheets.
